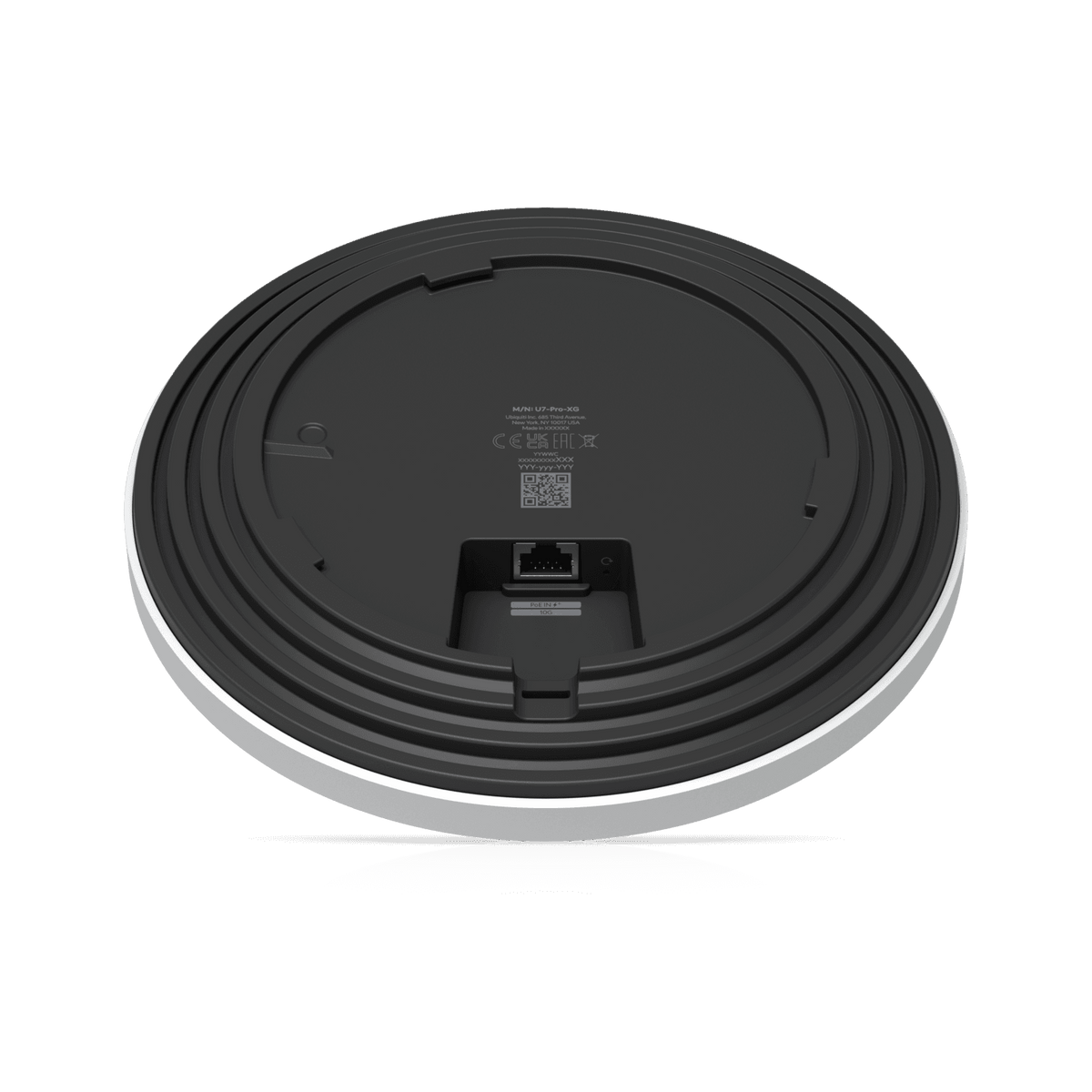

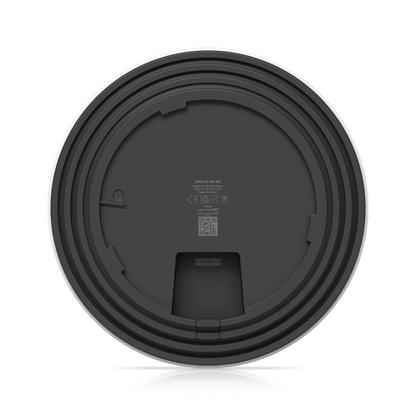

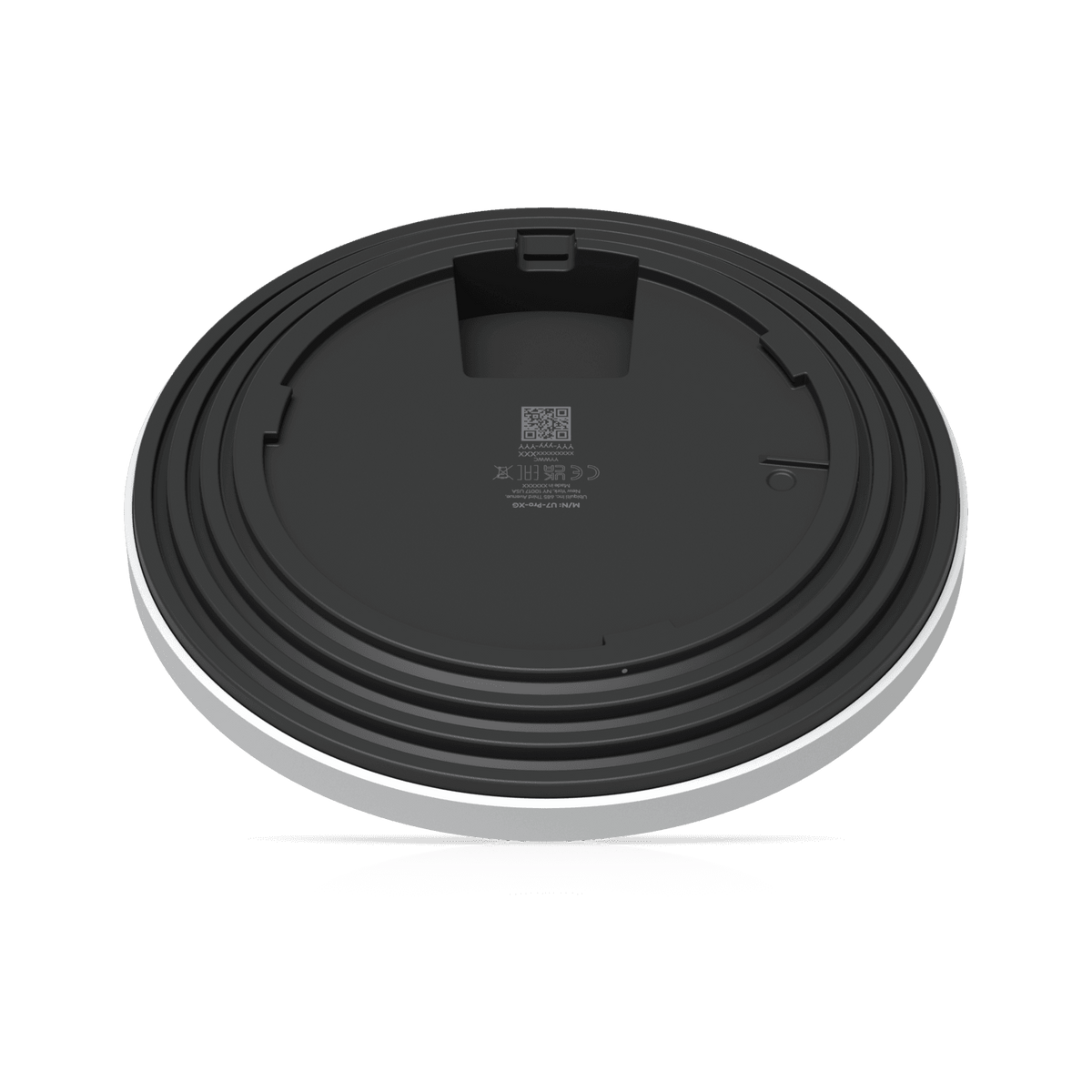

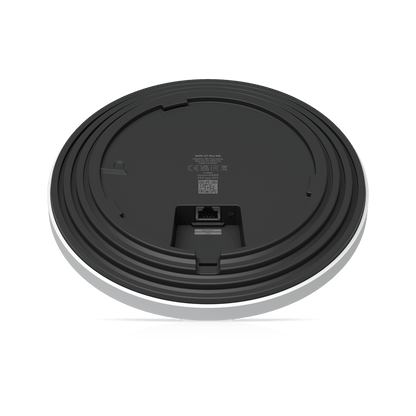

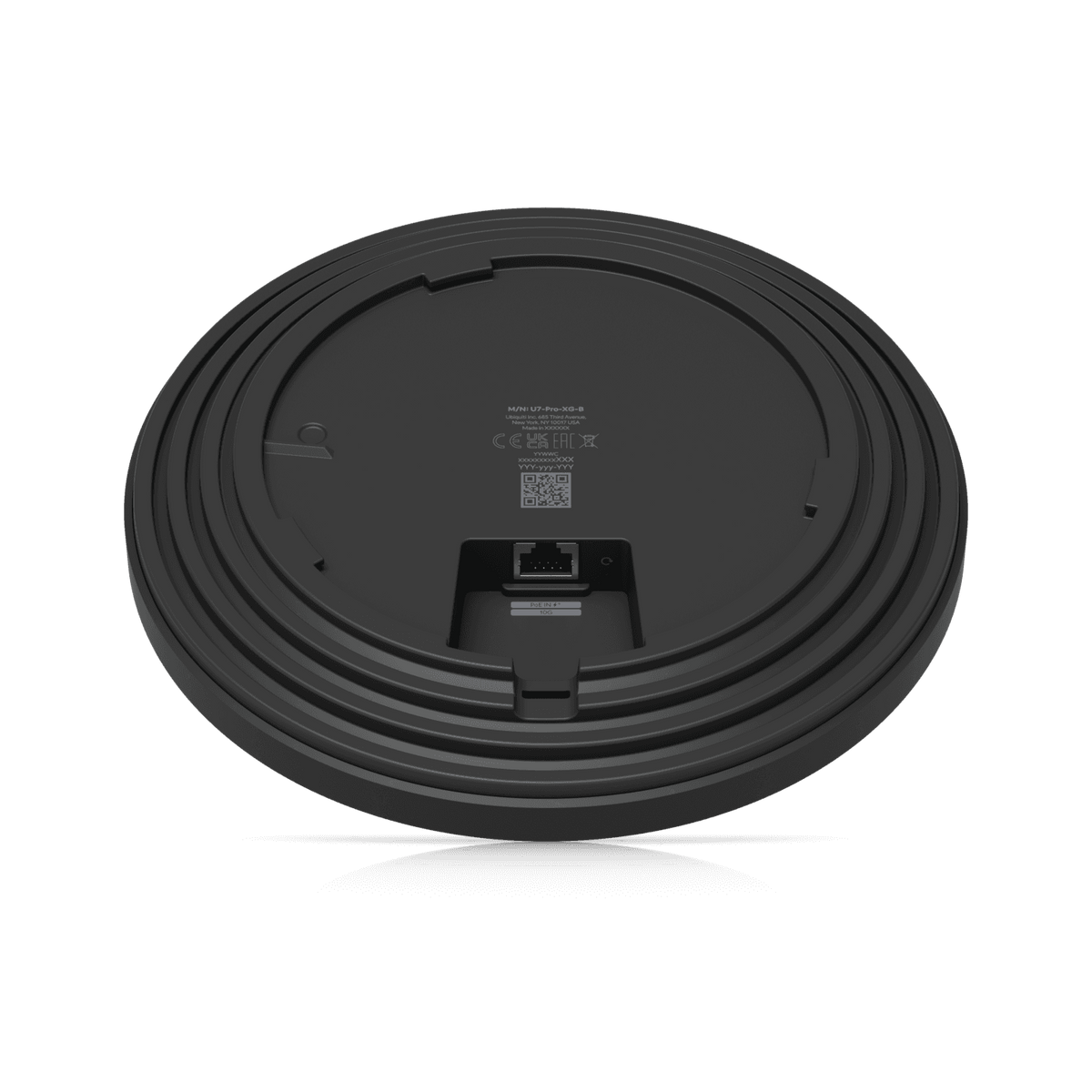

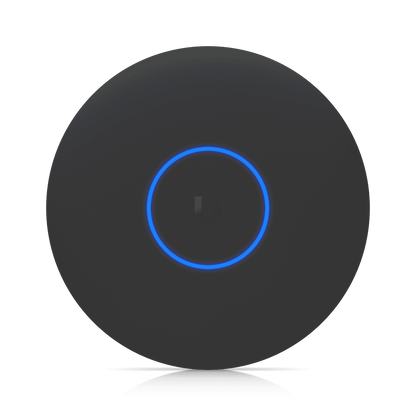

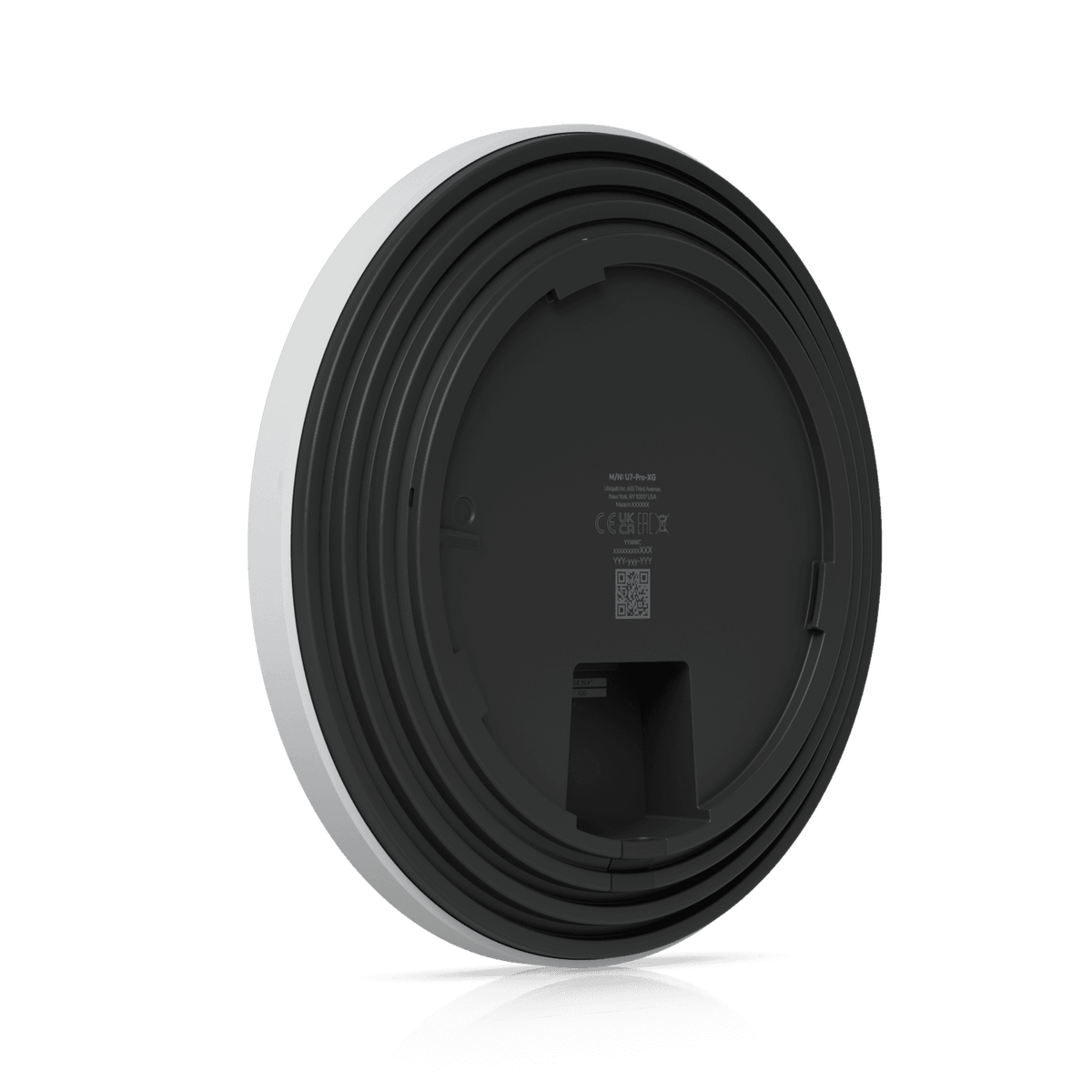

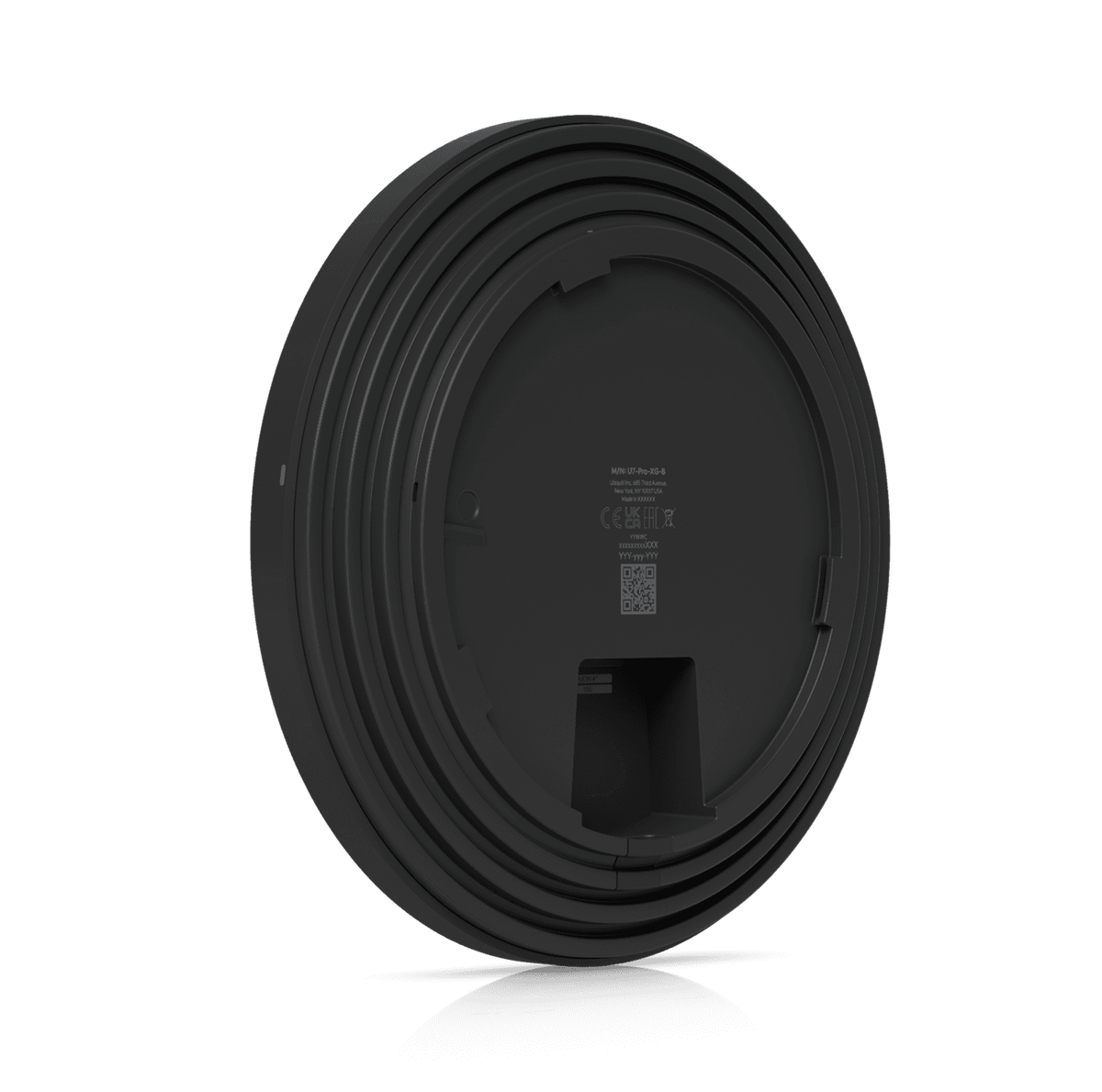

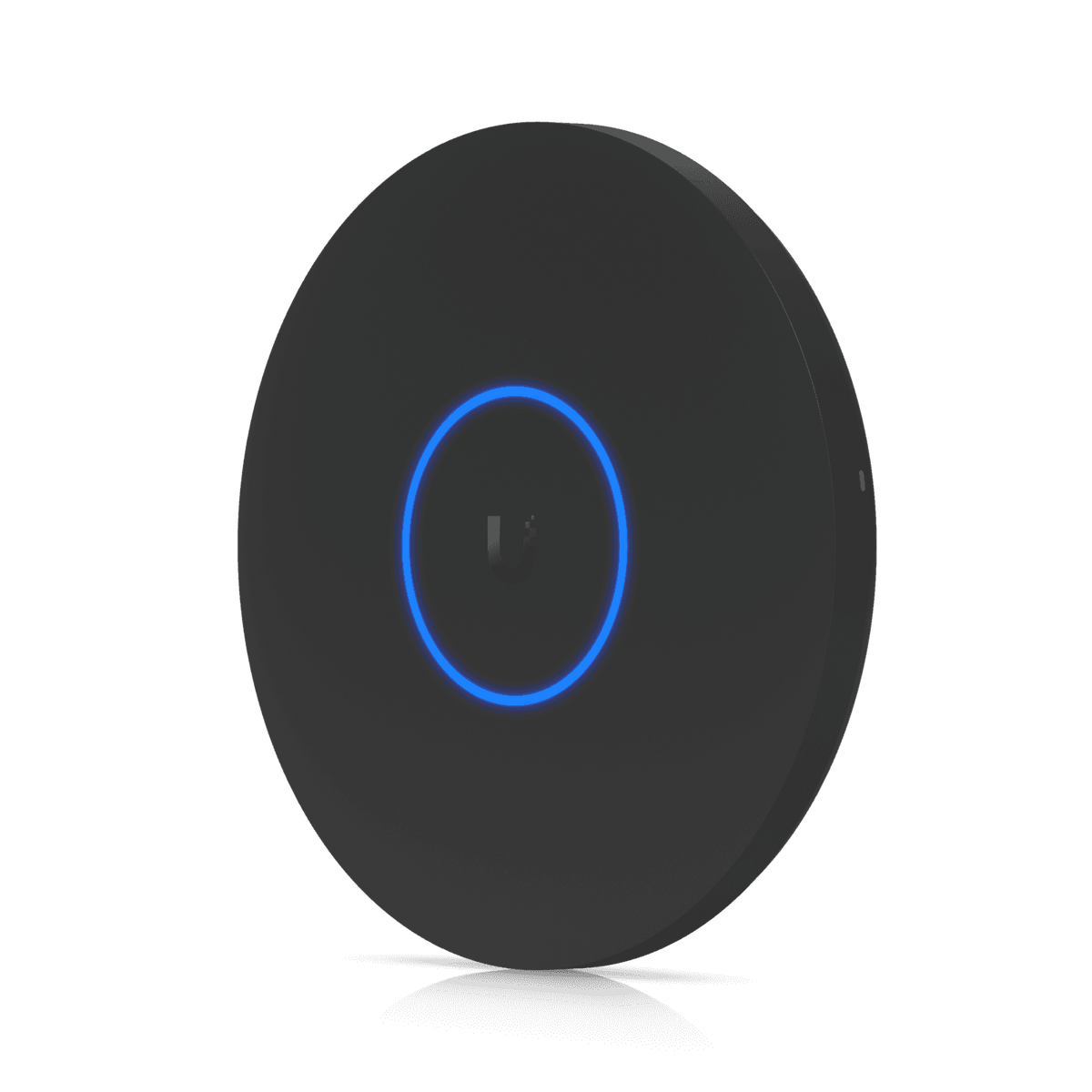

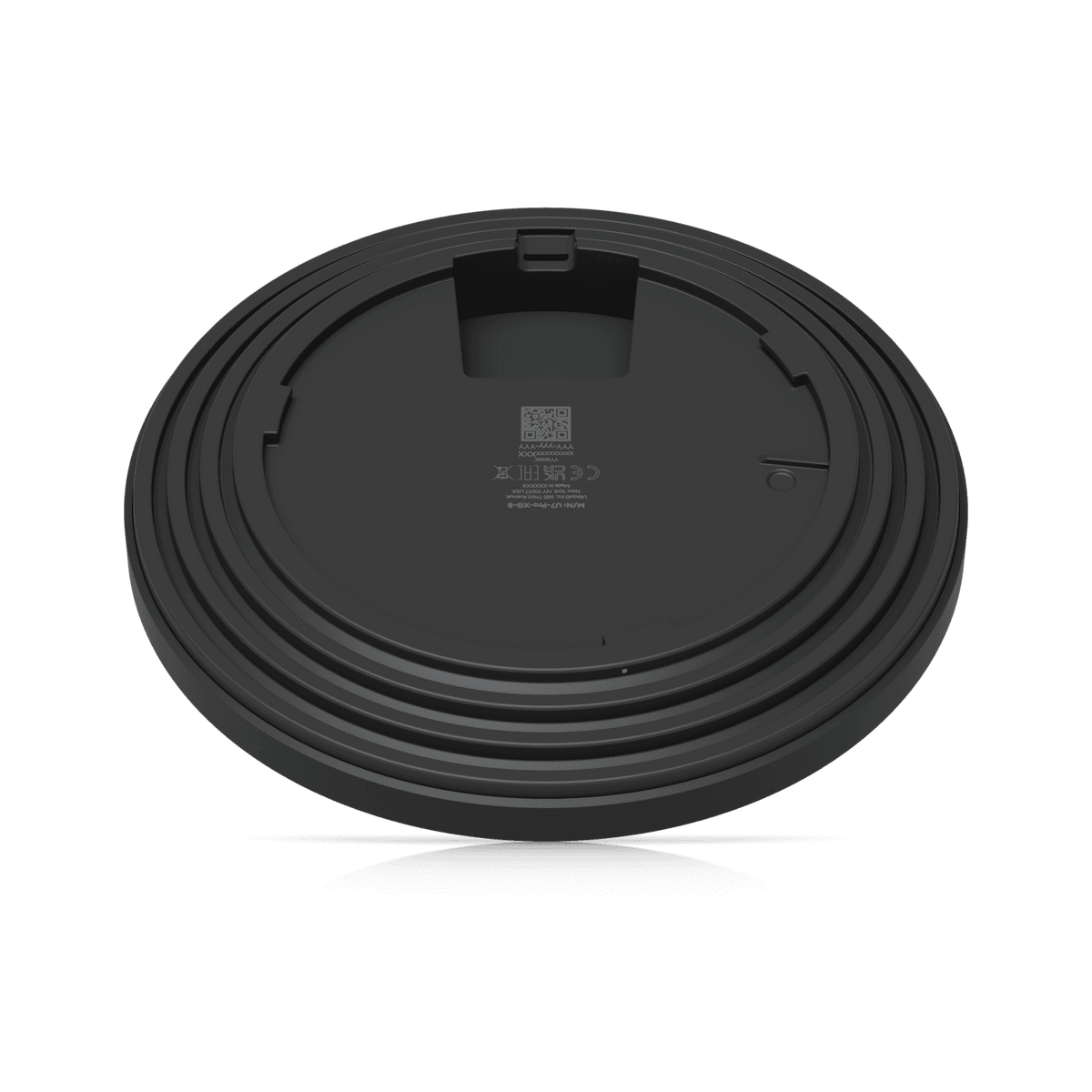

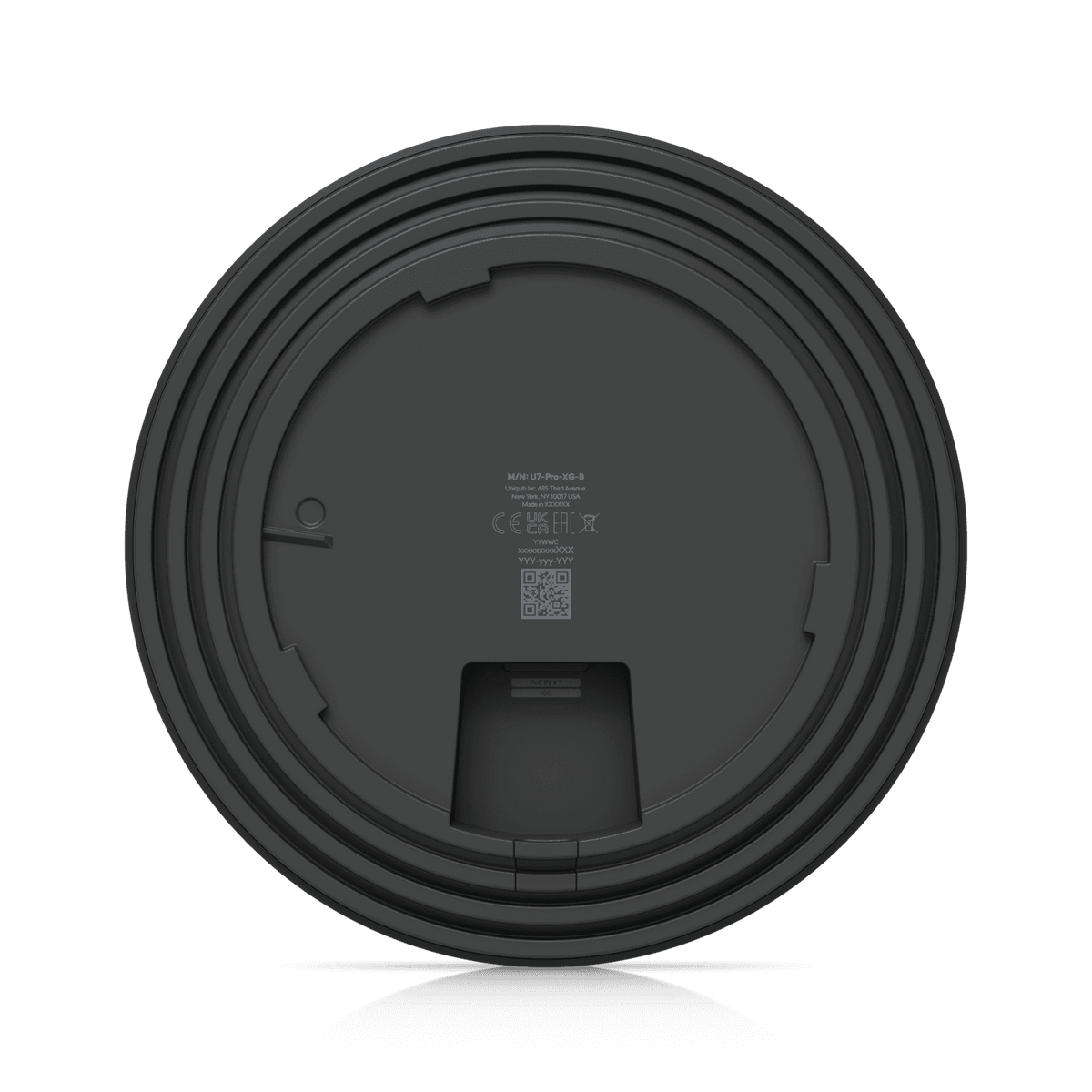

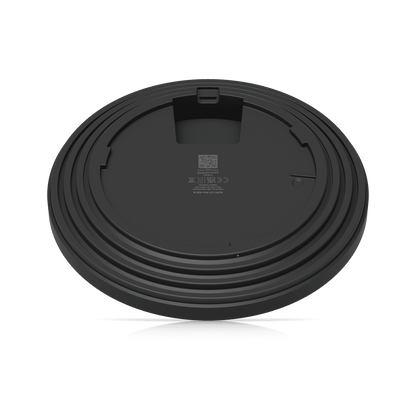

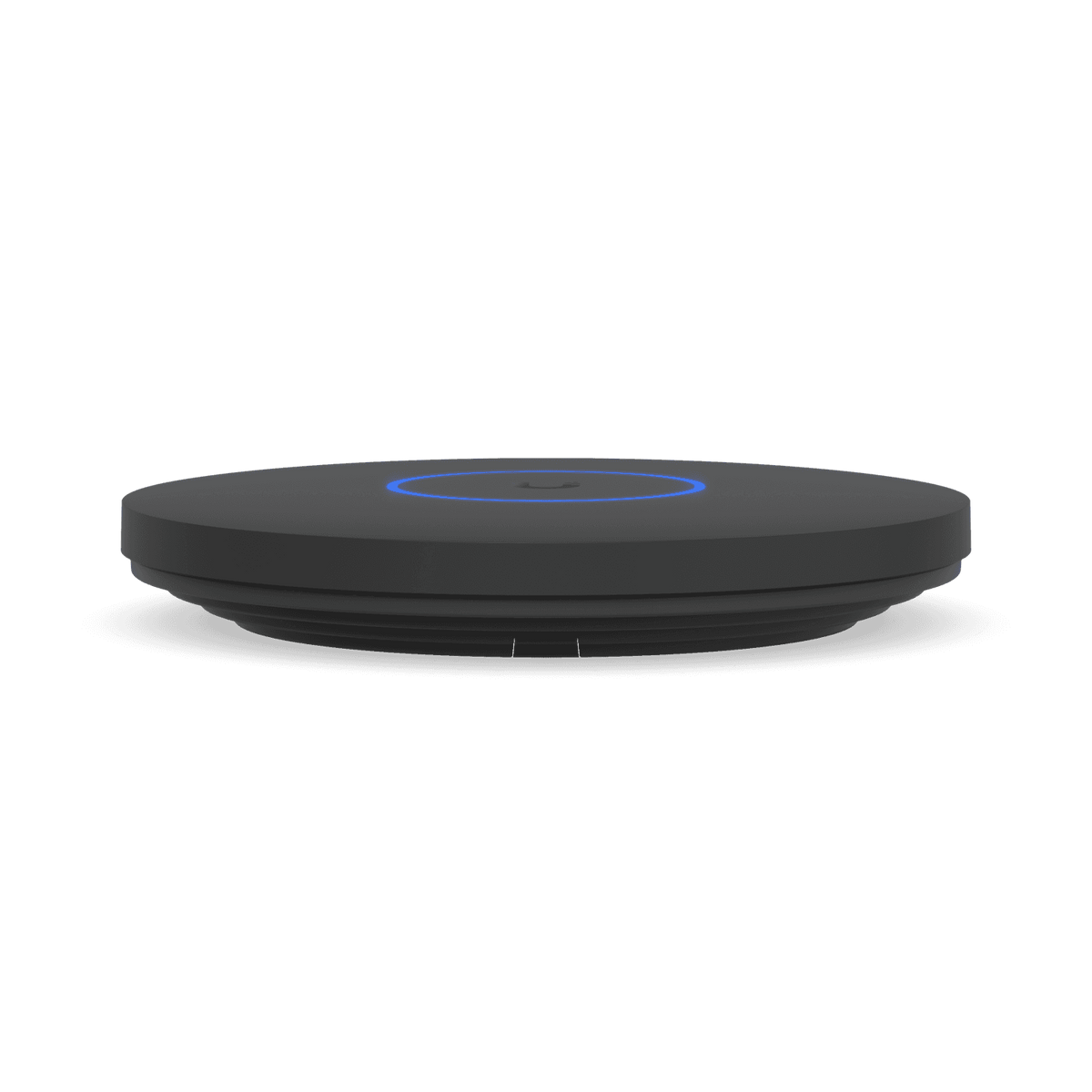

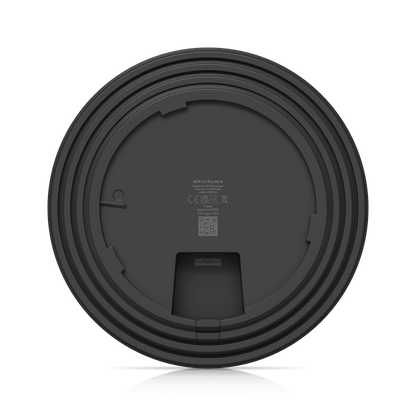

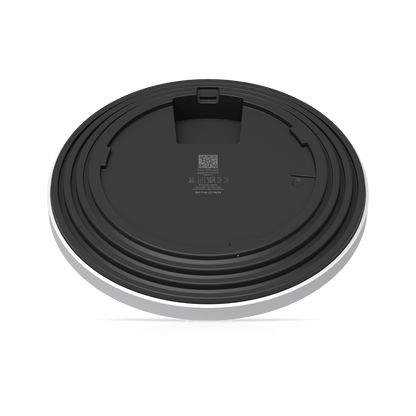

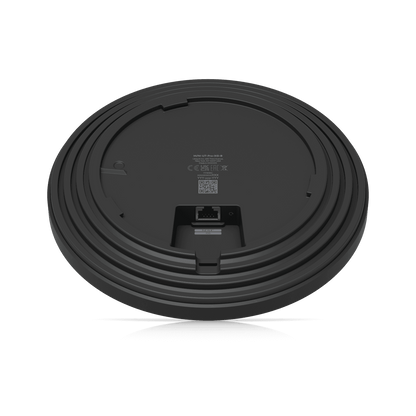

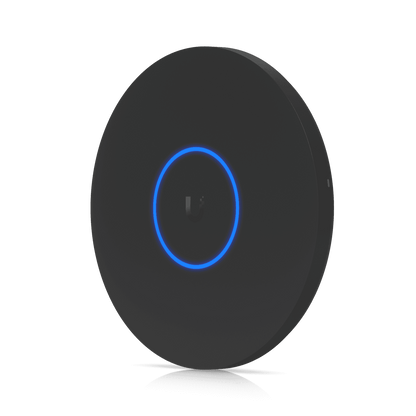

Ubiquiti UniFi WiFi 7 Pro XG Tri-Band Black AP

Ubiquiti UniFi WiFi 7 Pro XG Tri-Band Black AP

R 4,659.00 ZAR
R 4,659.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Ready to ship tomorrow

Ubiquiti's U7-Pro-XG-B is a black, Tri-Band, 6-stream, WiFi 7 access point featuring 1x 10Gbps Ethernet port and 6GHz support for interference-free WiFi in demanding, large-scale environments. It delivers an aggregate data rate of up to 10.78Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands and is powered by PoE+ (802.3at).


It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

  • 10 GbE Wired Uplink: Equipped with a single 10 Gbps Ethernet port to eliminate multi-gigabit wireless bottlenecks.
  • Tri-Band Wi-Fi 7: Operates across the 2.4 GHz, 5 GHz, and 6 GHz bands with full support for interference-free 320 MHz channels.
  • 6 Spatial Streams: Uses a 6-stream architecture (2x2 MU-MIMO on all three bands) delivering an aggregate data rate up to 10.78 Gbps.
  • Coverage & Capacity: Covers up to 140 m² (1,500 ft²) and supports 300+ concurrent clients.
  • Power Over Ethernet: Fully powered via standard PoE+ (802.3at) with a max power consumption of 22W.
  • Advanced Security: Features built-in support for Private Pre-Shared Keys (PPSK), client isolation, and guest portal management.

SPECIFICATIONS:

  • Dimensions: ⌀206 × 32.5 mm (⌀8.1 × 1.3")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 10 GbE
  • Mounting: Ceiling, Wall (Lite Mount included)
  • Power Method: PoE+
  • MIMO:
    • 6 GHz: 2 × 2 (DL/UL MU-MIMO)
    • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.8 Gbps (BW320)
    • 5 GHz: 4.3 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 6 GHz: 6 dBi
    • 5 GHz: 5 dBi
    • 2.4 GHz: 4 dBi
  • Max. TX Power:
    • 6 GHz: 24 dBm
    • 5 GHz: 26 dBm
    • 2.4 GHz: 23 dBm
  • Max. BSSIDs: 8 per radio
  • Supported Data Rates:
    • 802.11be (WiFi 7)
    • 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
    • 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
  • Wireless Meshing: ✓
  • Band Steering: ✓
  • 802.11v BSS Transition Management: ✓
  • 802.11r Fast Roaming: ✓
  • 802.11k Radio Resource Management (RRM): ✓
  • Advanced Radio Management: ✓
  • Passpoint (Hotspot 2.0): ✓
  • Captive Hotspot Portal: ✓
  • Custom Branding Landing Page: ✓
  • Voucher Authentication: ✓
  • Payment-Based Authentication: ✓
  • External Portal Server Support: ✓
  • Password Authentication: ✓
  • Guest Network Isolation: ✓
  • Private Pre-Shared Key (PPSK): ✓
  • WiFi Speed Limiting: ✓
  • Client Device Isolation: ✓
  • WiFi Schedules: ✓
  • RADIUS over TLS (RadSec): ✓
  • Dynamic RADIUS-assigned VLAN: ✓
  • Max. Power Consumption: 22 W
  • Supported Voltage Range: 42.5–57 V DC
  • Networking Interface: 1 × 10 GbE RJ45 port
  • Weight: 750 g (1.7 lb)
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: System — White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
  • Operating Frequency — US/CA:
    • 2400–2472 MHz
    • U-NII-1: 5150–5250 MHz
    • U-NII-2A: 5250–5350 MHz
    • U-NII-2C: 5470–5725 MHz
    • U-NII-3: 5725–5850 MHz
    • U-NII-5 to U-NII-8: 5925–7125 MHz
  • Operating Frequency — Worldwide:
    • 2400–2483.5 MHz
    • 5150–5850 MHz
    • 5925–7125 MHz
  • Ambient Operating Temperature: -30 to 40 °C (-22 to 104 °F)
  • Ambient Operating Humidity: 5–95% noncondensing
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC, Anatel: 06630-25-08356
  • Application Requirements: UniFi Network:
    • Version 9.0.114 and later (U7 Pro XG – White)
    • Version 9.1.120 and later (U7 Pro XG – Black)

WHAT’S IN THE BOX:

  • U7 Pro XG Access Point (Black unit) x1
  • Lite Mount bracket for ceiling or wall installation x1
  • False/drop ceiling backing plate x1
  • Bubble level tool (disposable style to assist alignment) x1
  • Quick-release key for unlocking the unit from its bracket x1
  • Installation hardware kit (screws, wall plugs, and bolts) x1

WARRANTY:

  • 12 Months
