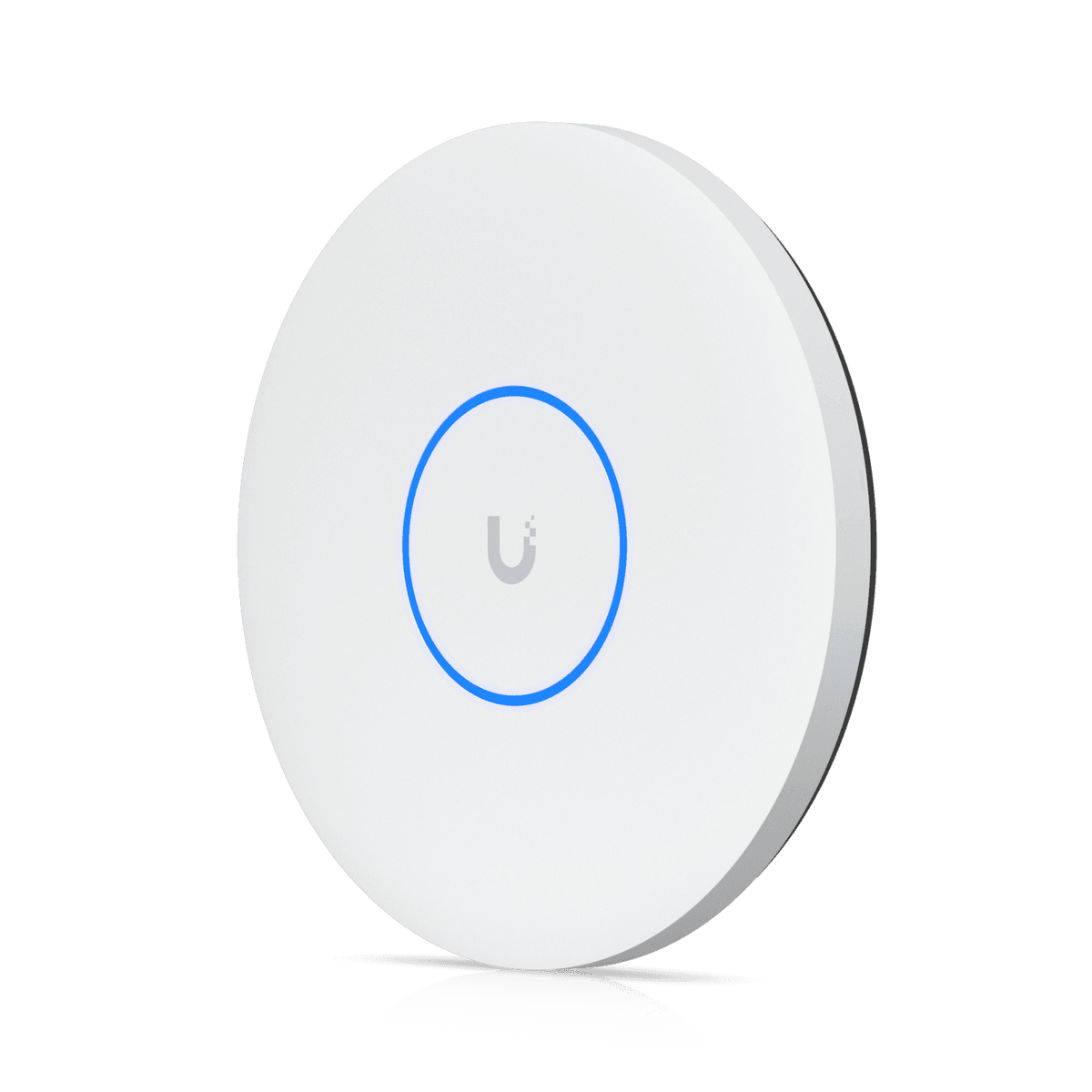

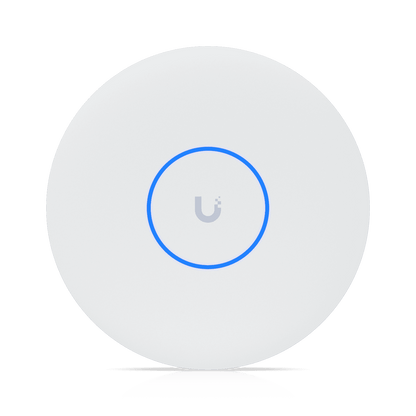

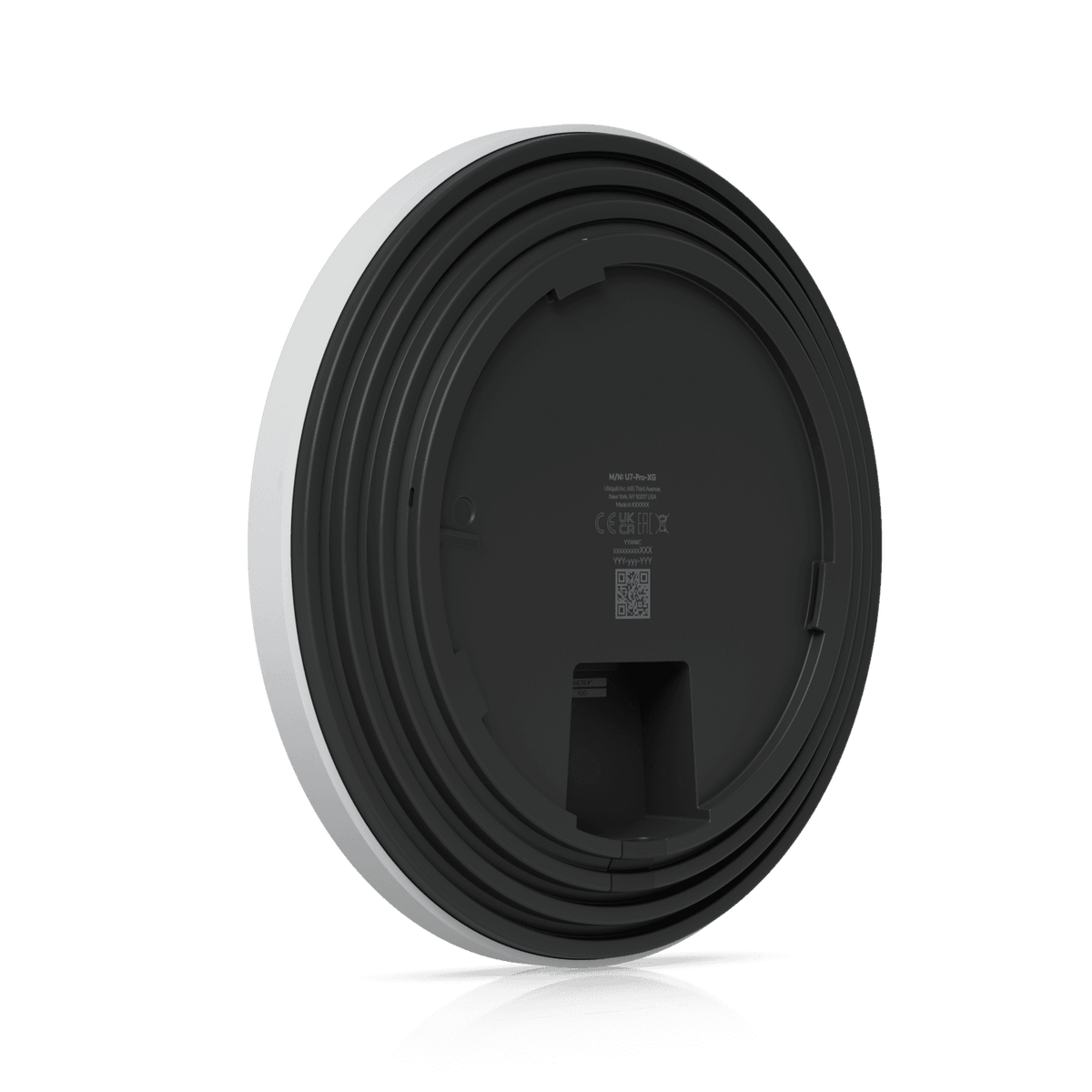

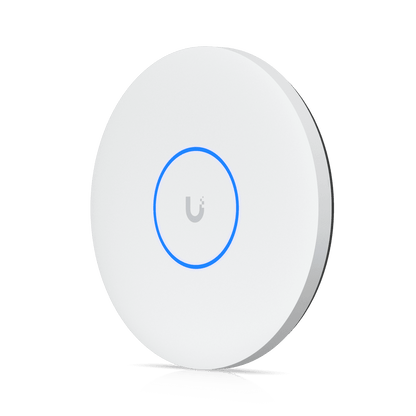

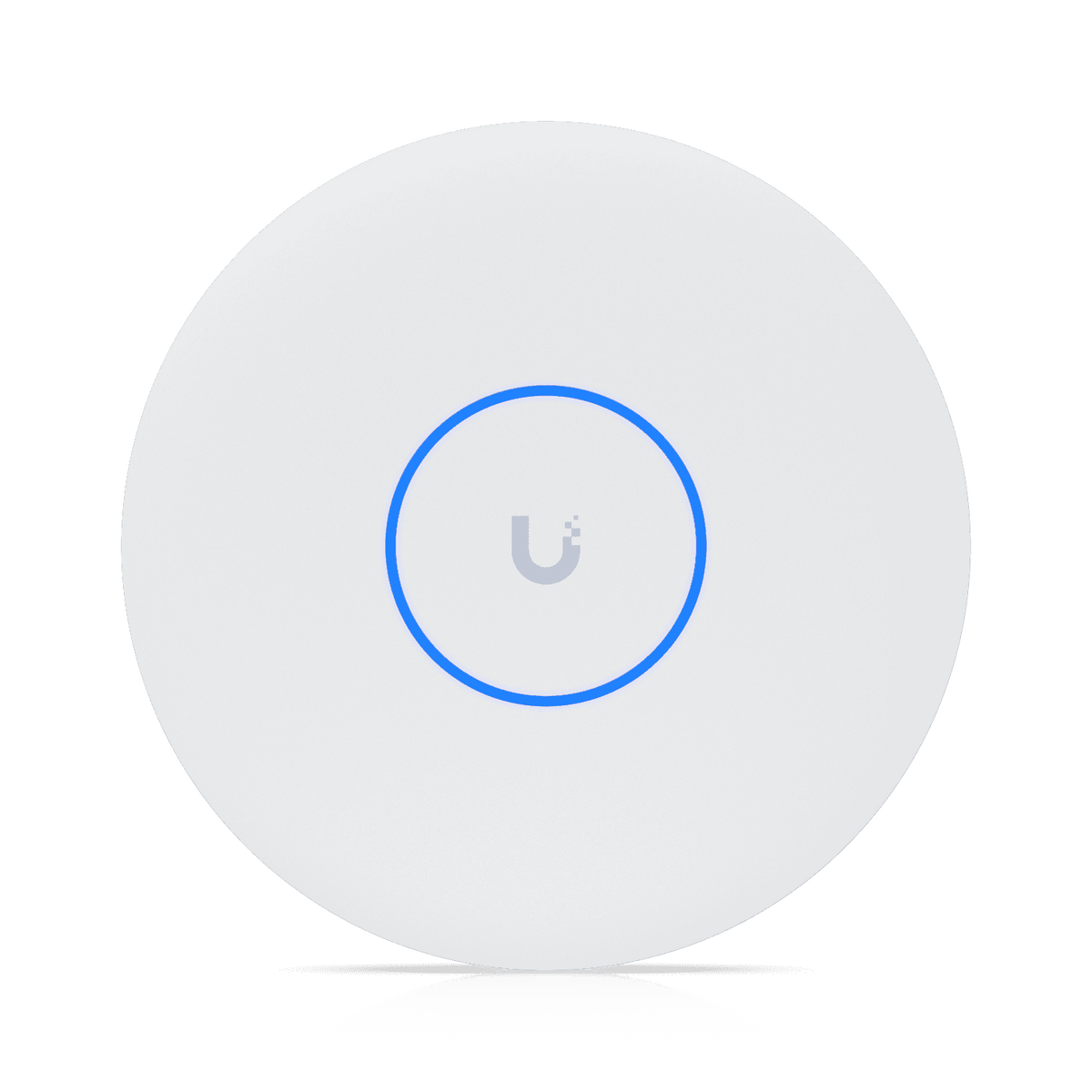

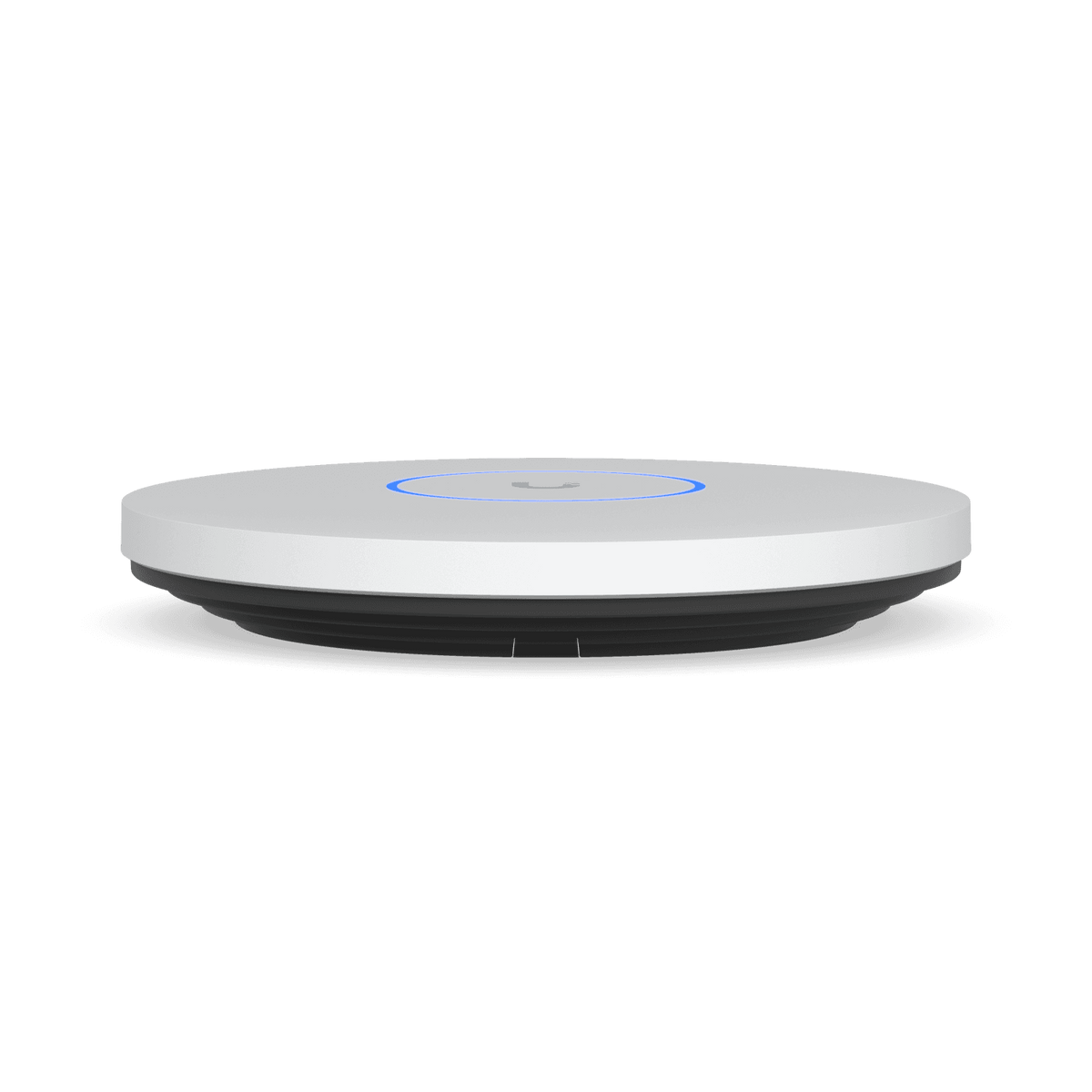

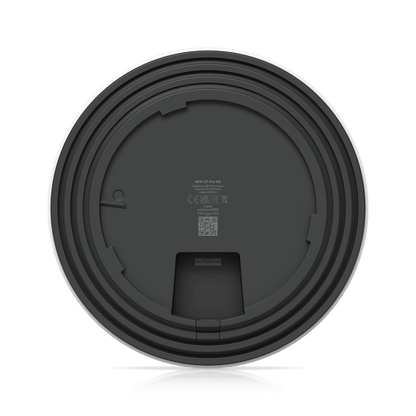

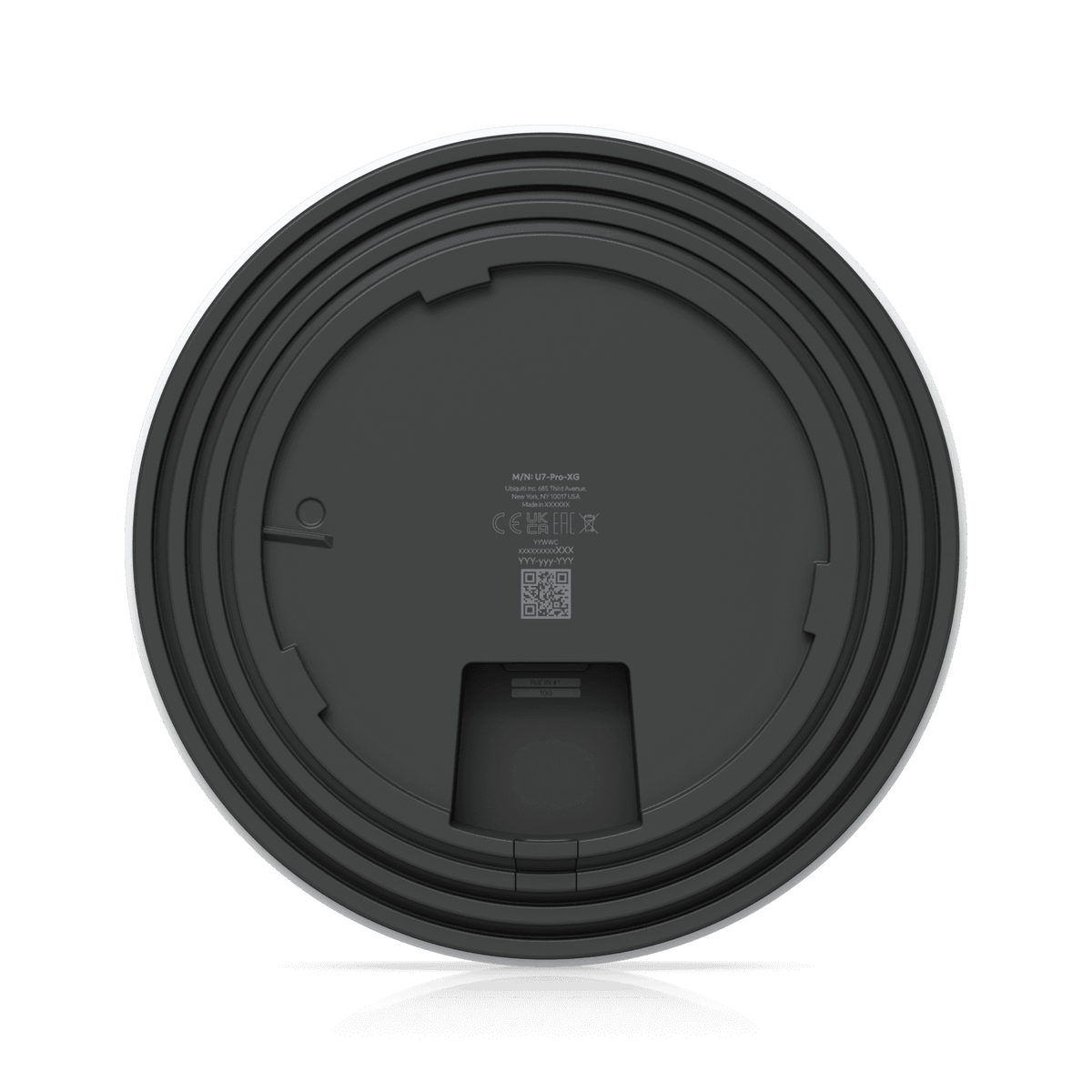

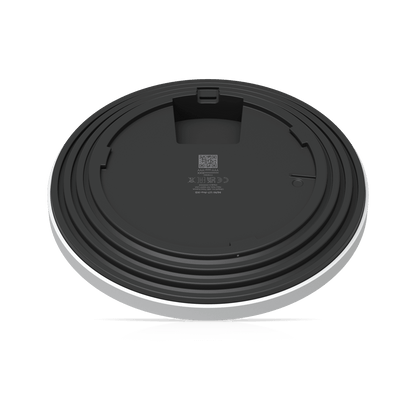

Ubiquiti UniFi WiFi 7 Pro XG Tri-Band White AP

Ubiquiti's U7-Pro-XG is a white, Tri-Band, 6-stream, WiFi 7 access point featuring 1x 10Gbps Ethernet port and 6GHz support for interference-free WiFi in demanding, large-scale environments. It delivers an aggregate data rate of up to 10.78Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands and is powered by PoE+ (802.3at).

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• 10 GbE Wired Uplink: Equipped with a 10 Gbps Ethernet port to remove physical network bottlenecks.
• Triple-Band Wi-Fi 7: Operates across the 2.4 GHz, 5 GHz, and 6 GHz bands with full support for ultra-wide 320 MHz channels.
• 10.78 Gbps Aggregate Throughput: Utilizes a 6-stream configuration (2x2 MU-MIMO on all bands) for multi-gigabit wireless speeds.
• Capacity & Coverage: Covers up to 140 m² (1,500 ft²) and seamlessly supports 300+ connected devices.
• PoE+ Powered: Runs on standard 802.3at Power over Ethernet (22W maximum draw).
• Premium Design: Features a silent, fanless thermal design available in white or matte black finishes.

SPECIFICATIONS:

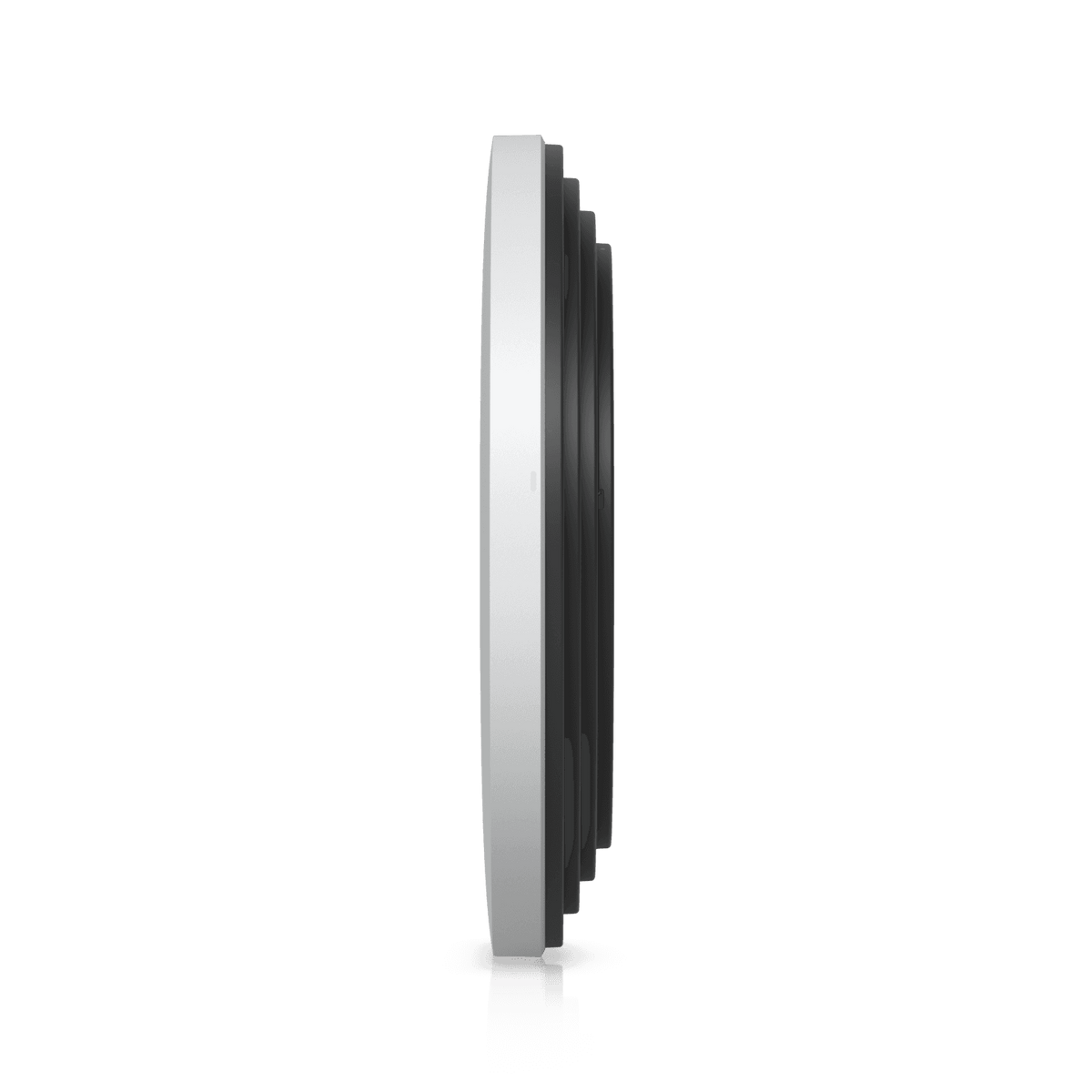

• Dimensions: ⌀206 × 32.5 mm (⌀8.1 × 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 10 GbE
• Mounting: Ceiling, Wall (Lite Mount included)
• Power Method: PoE+
• MIMO:
  • 6 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 6 dBi
  • 5 GHz: 5 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 6 GHz: 24 dBm
  • 5 GHz: 26 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11be (WiFi 7)
  • 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
  • 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 22 W
• Supported Voltage Range: 42.5–57 V DC

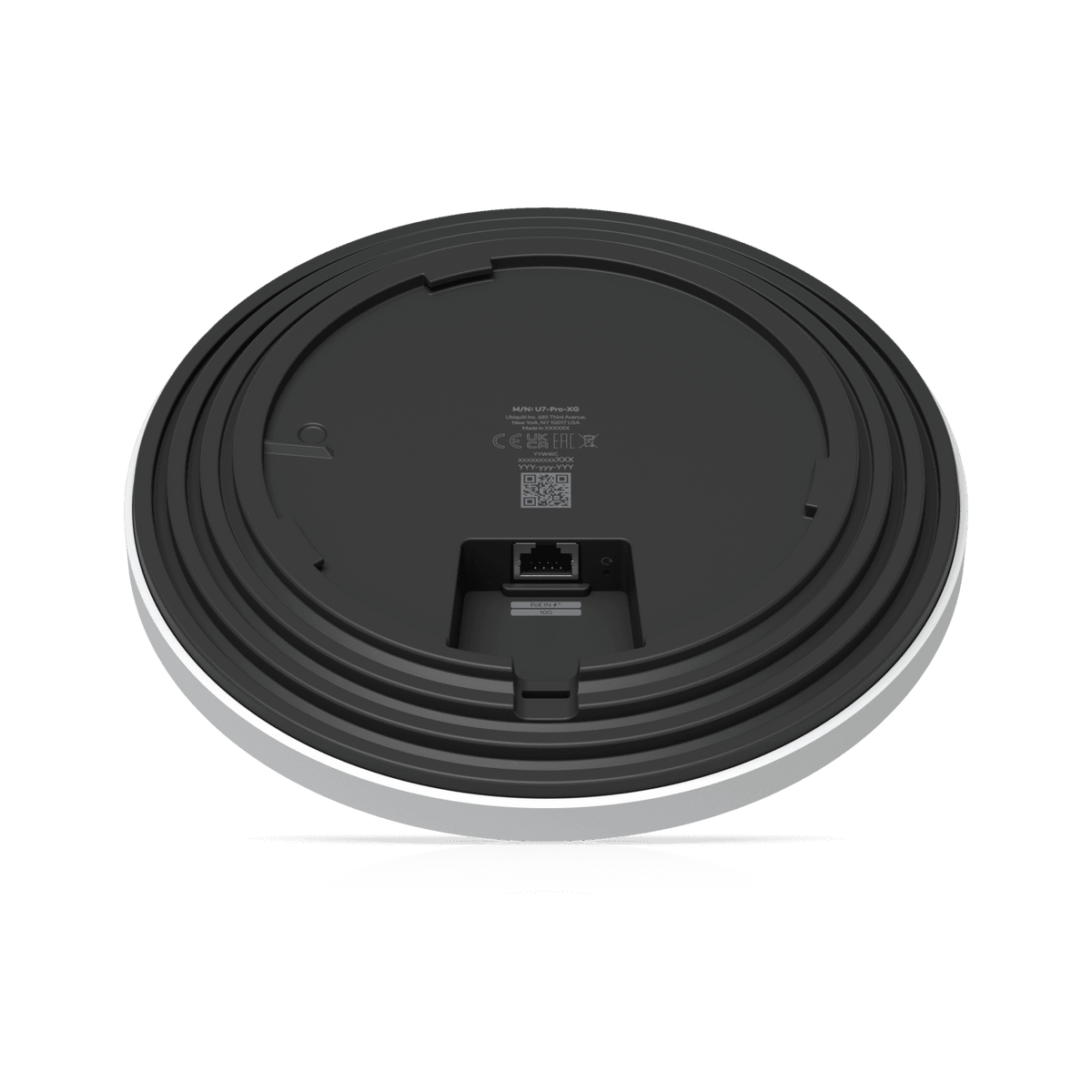

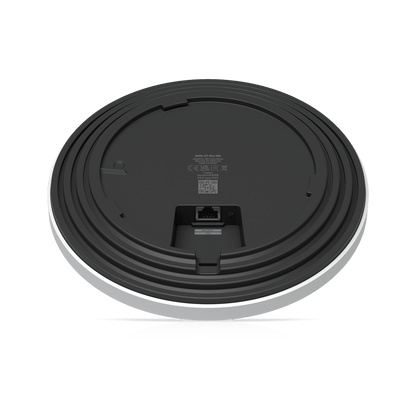

• Networking Interface: 1 × 10 GbE RJ45 port
• Weight: 750 g (1.7 lb)
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
• Operating Frequency — US/CA:
  • 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
  • U-NII-5 to U-NII-8: 5925–7125 MHz
• Operating Frequency — Worldwide:
  • 2400–2483.5 MHz
  • 5150–5850 MHz
  • 5925–7125 MHz
• Ambient Operating Temperature: -30 to 40 °C (-22 to 104 °F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 06630-25-08356
• Application Requirements: UniFi Network:
  • Version 9.0.114 and later (U7 Pro XG – White)
  • Version 9.1.120 and later (U7 Pro XG – Black)

WHAT’S IN THE BOX:

• U7 Pro XG Access Point unit x1
• Lite Mount bracket for ceiling or wall mounting x1
• Suspended/Drop ceiling backing plate and tile clips x1
• Drilling template and leveling tool x1
• Quick-release flat pick tool (to unlatch the unit from its bracket) x1
• Installation hardware kit (screws, wall anchors, and nuts) x1

WARRANTY:

• 12 Months
