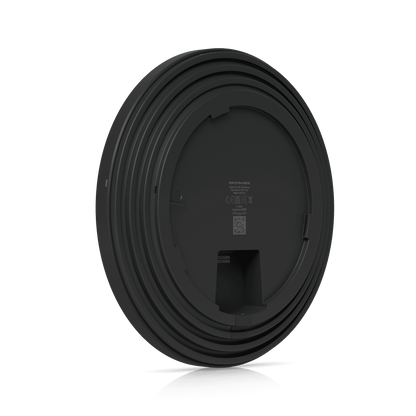

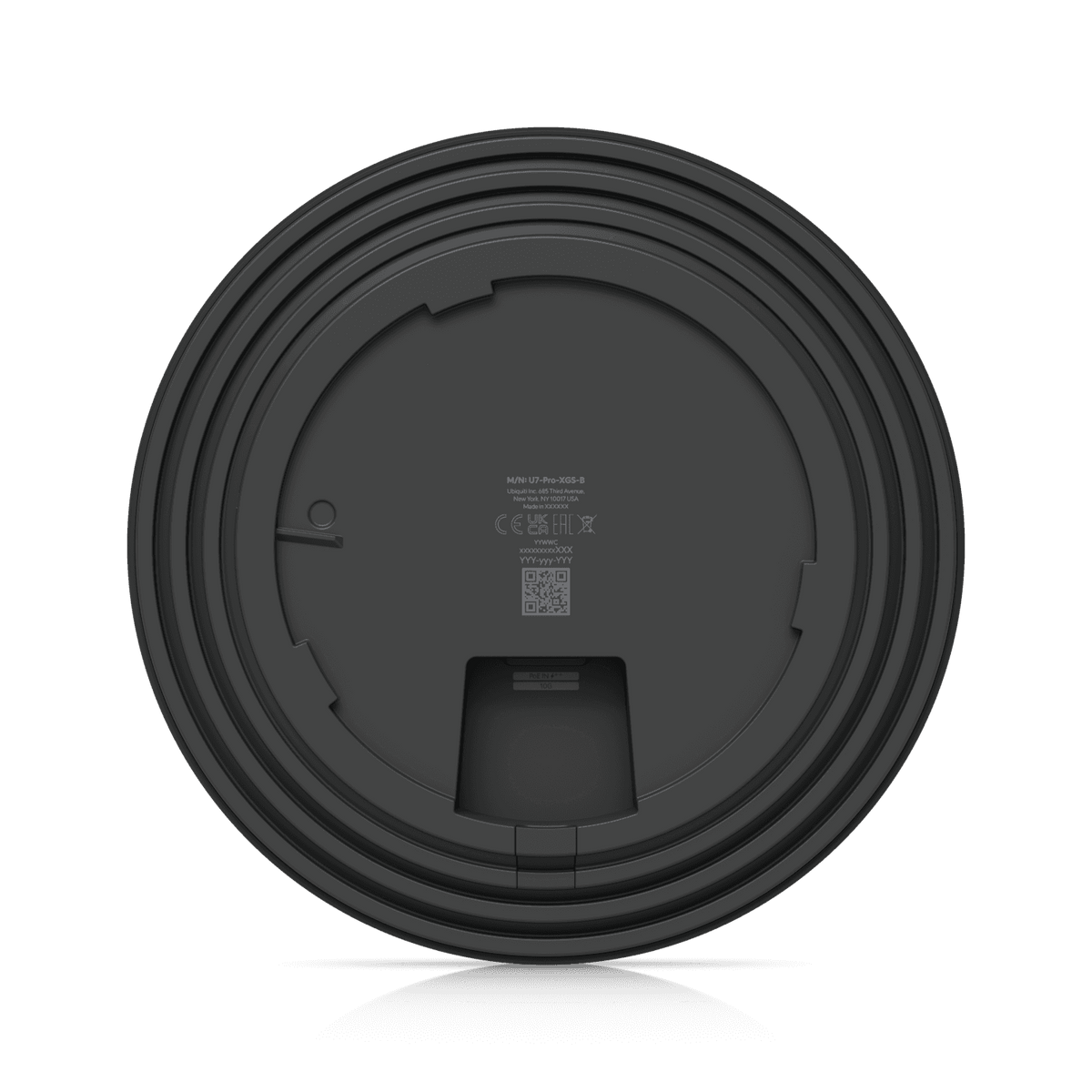

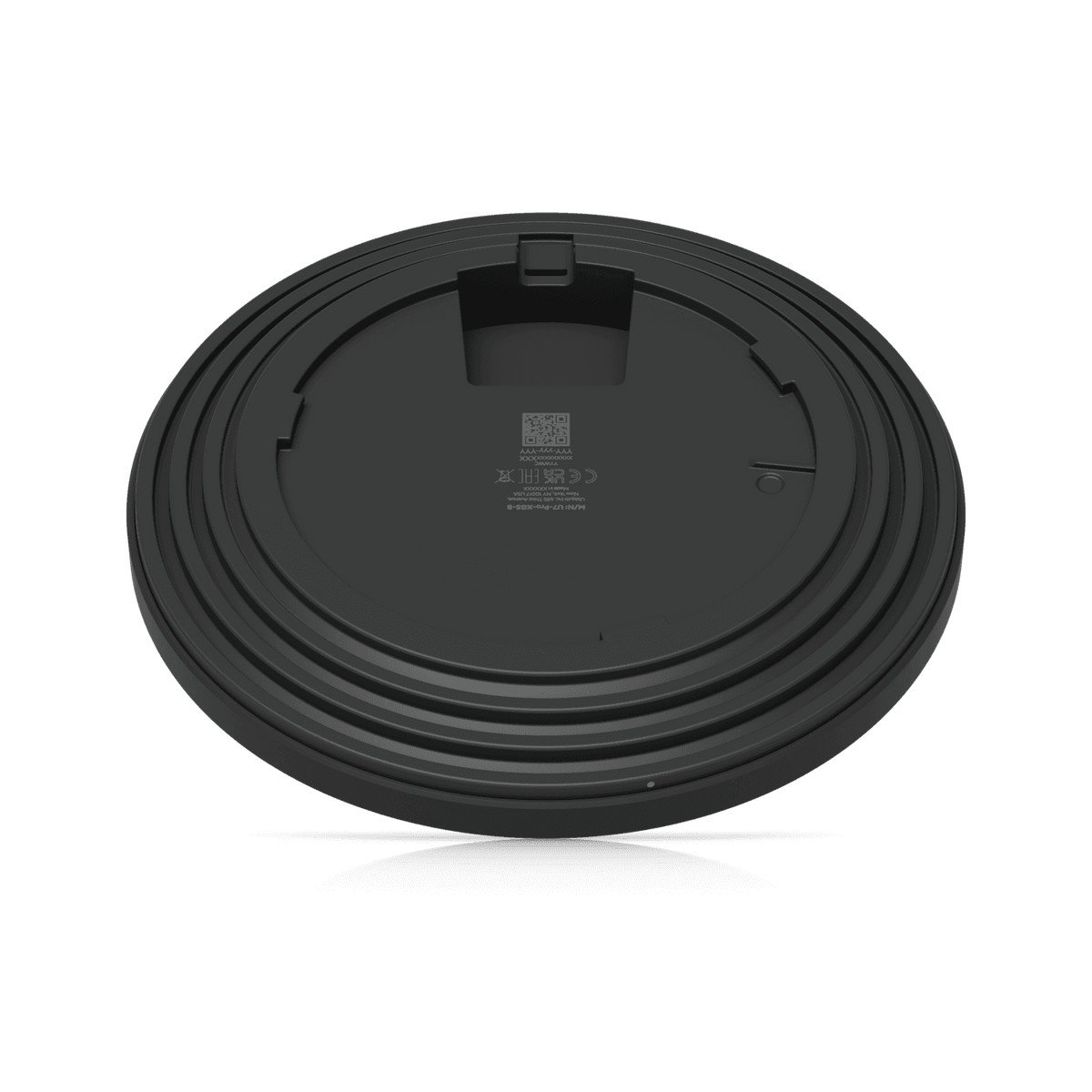

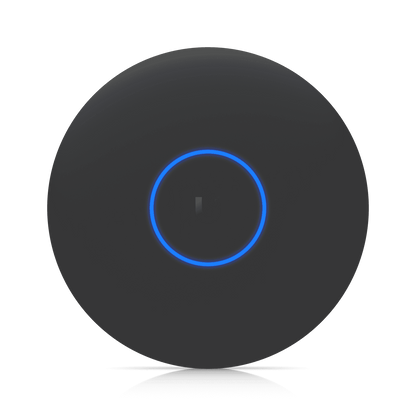

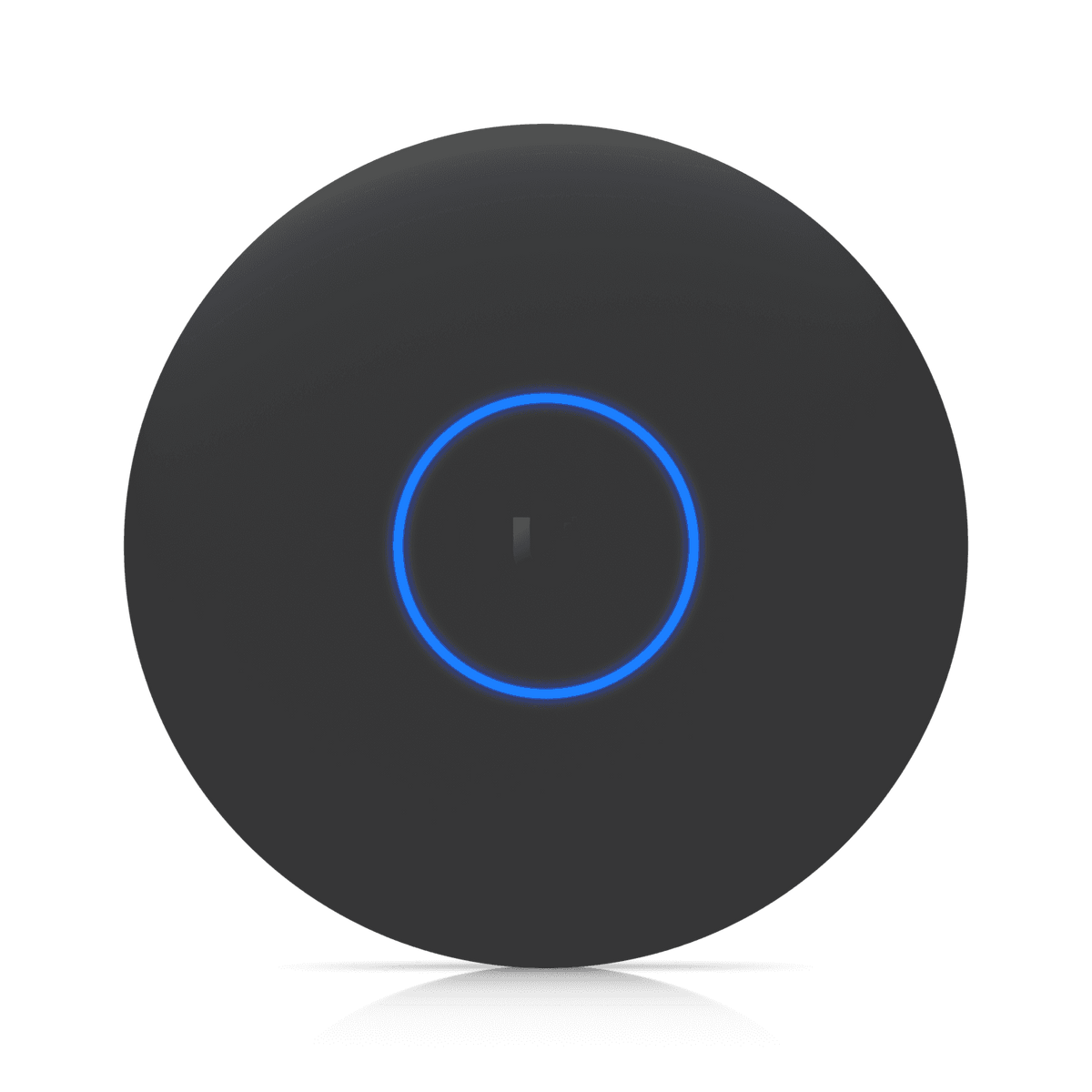

Ubiquiti UniFi WiFi 7 Pro XGS Tri-Band Black AP

Ubiquiti's U7 Pro XGS is a black, Tri-Band, 8-stream, WiFi 7 access point featuring 1x 10Gbps Ethernet port and 6GHz support for interference-free WiFi in demanding, large-scale environments. It delivers an aggregate data rate of up to 15Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (4x4 MU-MIMO), and 2.4GHz (2x2 MU-MIMO) bands and is powered by PoE++ (802.3bt).

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Dedicated Security Radio: Features an independent radio that constantly scans the RF environment for interference and security threats without disrupting client traffic.
• 10 GbE Wired Uplink: Equipped with a 10 Gbps Ethernet port to eliminate network bottlenecks.
• 8 Spatial Streams: Employs a robust 8-stream architecture (including 4x4 MU-MIMO on 5 GHz) delivering aggregate wireless speeds up to 15 Gbps.
• Massive Capacity & Coverage: Covers up to 160 m² (1,750 ft²) and seamlessly supports 500+ connected devices.
• PoE++ Powered: Requires standard 802.3bt Power over Ethernet (29W maximum draw) due to its high-performance hardware.
• Triple-Band Wi-Fi 7: Utilizes the 2.4 GHz, 5 GHz, and 6 GHz wireless bands with full support for ultra-wide 320 MHz channels.

SPECIFICATIONS:

• Dimensions: ⌀215 × 32.5 mm (⌀8.5 × 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 8
• Coverage Area: 160 m² (1,750 ft²)
• Max. Client Count: 500+
• Uplink: 10 GbE
• Mounting: Ceiling, Wall (Lite Mount included)
• Power Method: PoE++
• MIMO:
  • 6 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 5 GHz: 4 × 4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 8.6 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 6 dBi
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 6 GHz: 24 dBm
  • 5 GHz: 29 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11be (WiFi 7)
  • 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
  • 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Zero-Wait DFS: ✓
• Advanced Radio Management: ✓
• Real-Time Spectral Analysis: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 29 W
• Supported Voltage Range: 42.5–57 V DC

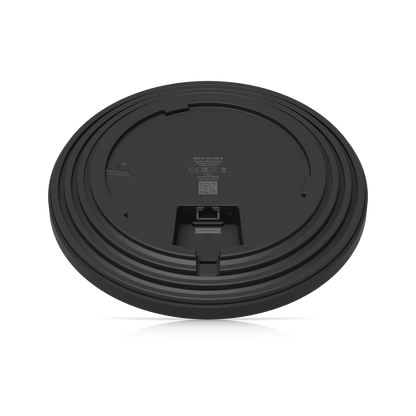

• Networking Interface: 1 × 10 GbE RJ45 port
• Weight: 800 g (1.8 lb)
• Management: Ethernet
• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• LEDs: System — White/Blue
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
• Operating Frequency — US/CA:
  • 2400–2472 MHz
  • U-NII-1: 5150–5250 MHz
  • U-NII-2A: 5250–5350 MHz
  • U-NII-2C: 5470–5725 MHz
  • U-NII-3: 5725–5850 MHz
  • U-NII-5 to U-NII-8: 5925–7125 MHz
• Operating Frequency — Worldwide:
  • 2400–2483.5 MHz
  • 5150–5850 MHz
  • 5925–7125 MHz
• Ambient Operating Temperature: -30 to 40 °C (-22 to 104 °F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 05123-25-08356
• Application Requirements: UniFi Network:
  • Version 9.0.114 and later (U7 Pro XGS – White)
  • Version 9.1.120 and later (U7 Pro XGS – Black)

WHAT’S IN THE BOX:

• U7 Pro XGS Access Point unit x1
• Lite Mount bracket for ceiling or wall mounting x1
• Suspended/Drop ceiling backing plate and tile clips x1
• Drilling template and leveling tool x1
• Quick-release flat pick tool (to unlatch the unit from its bracket) x1
• Installation hardware kit (screws, wall anchors, and nuts) x1

WARRANTY:

• 12 Months
