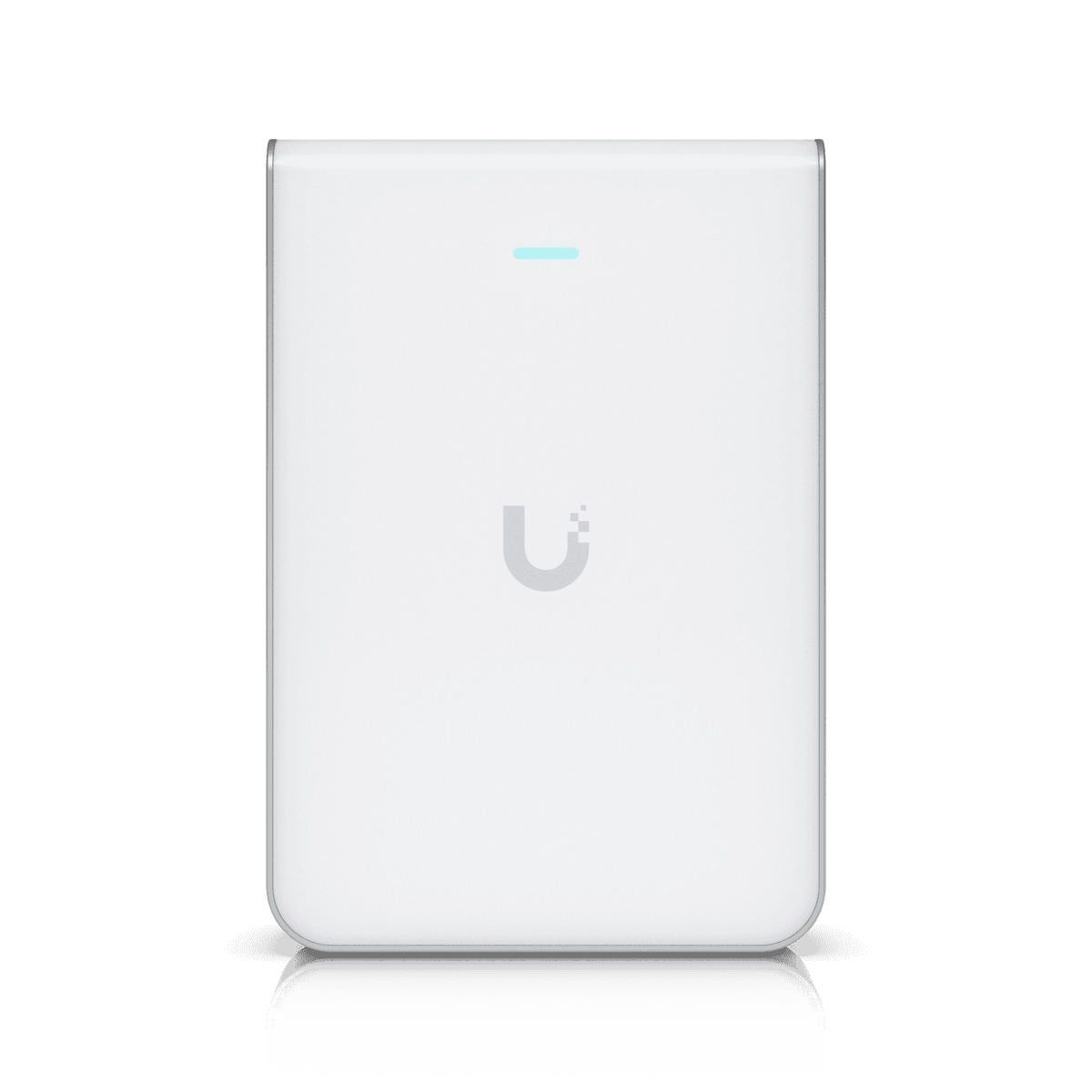

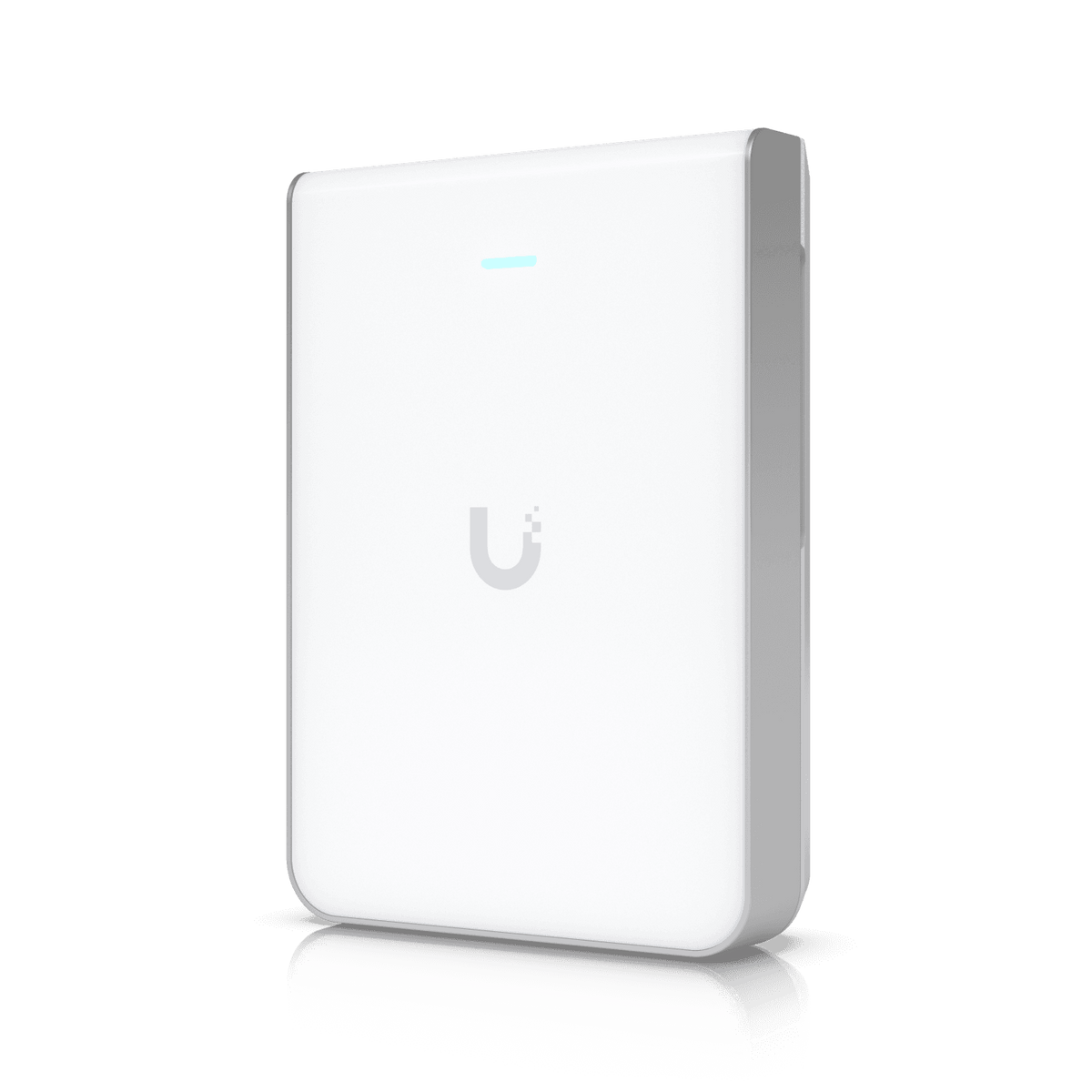

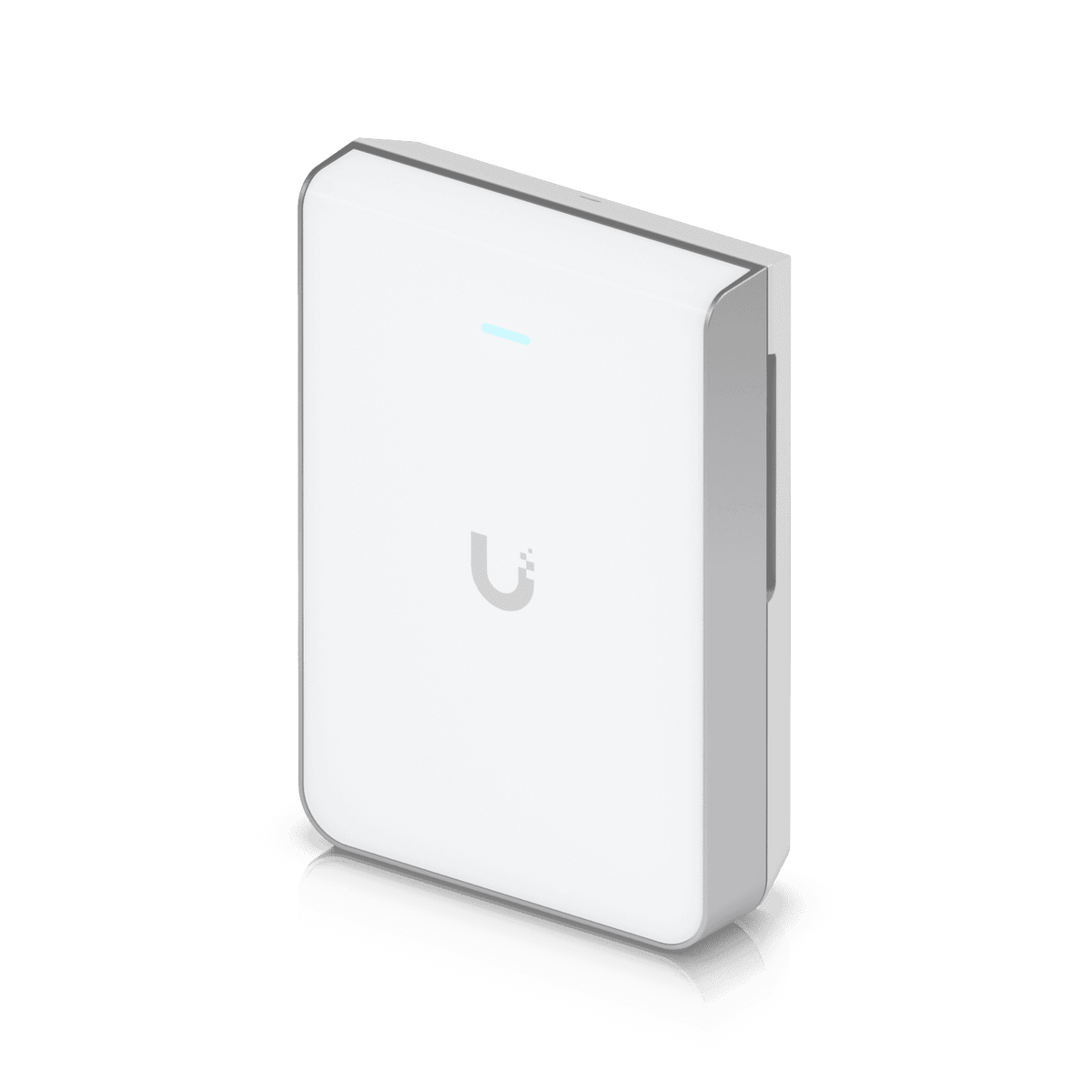

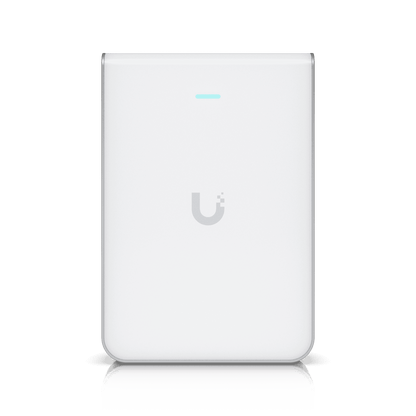

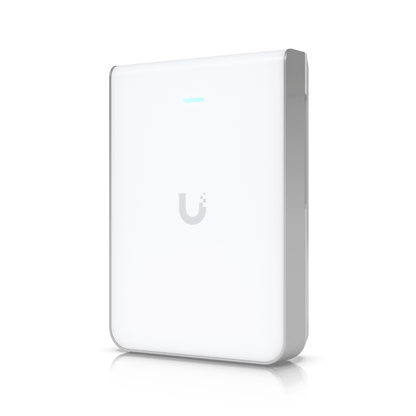

Ubiquiti UniFi WiFi 7 Tri-Band Pro In-Wall AP

Ubiquiti's U7-Pro-Wall is a Tri-Band, WiFi 7 access point featuring 1x 2.5Gbps Ethernet port as well as 6GHz support for interference-free WiFi in demanding, large scale environments. It delivers an aggregate data rate of up to 10.7Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• Tri-Band Wi-Fi 7: Operates on the 2.4 GHz, 5 GHz, and 6 GHz spectrums to maximize performance and avoid network congestion.
• 10.7 Gbps Aggregate Speed: Built with 6 spatial streams (2x2 MIMO on all three wireless bands).

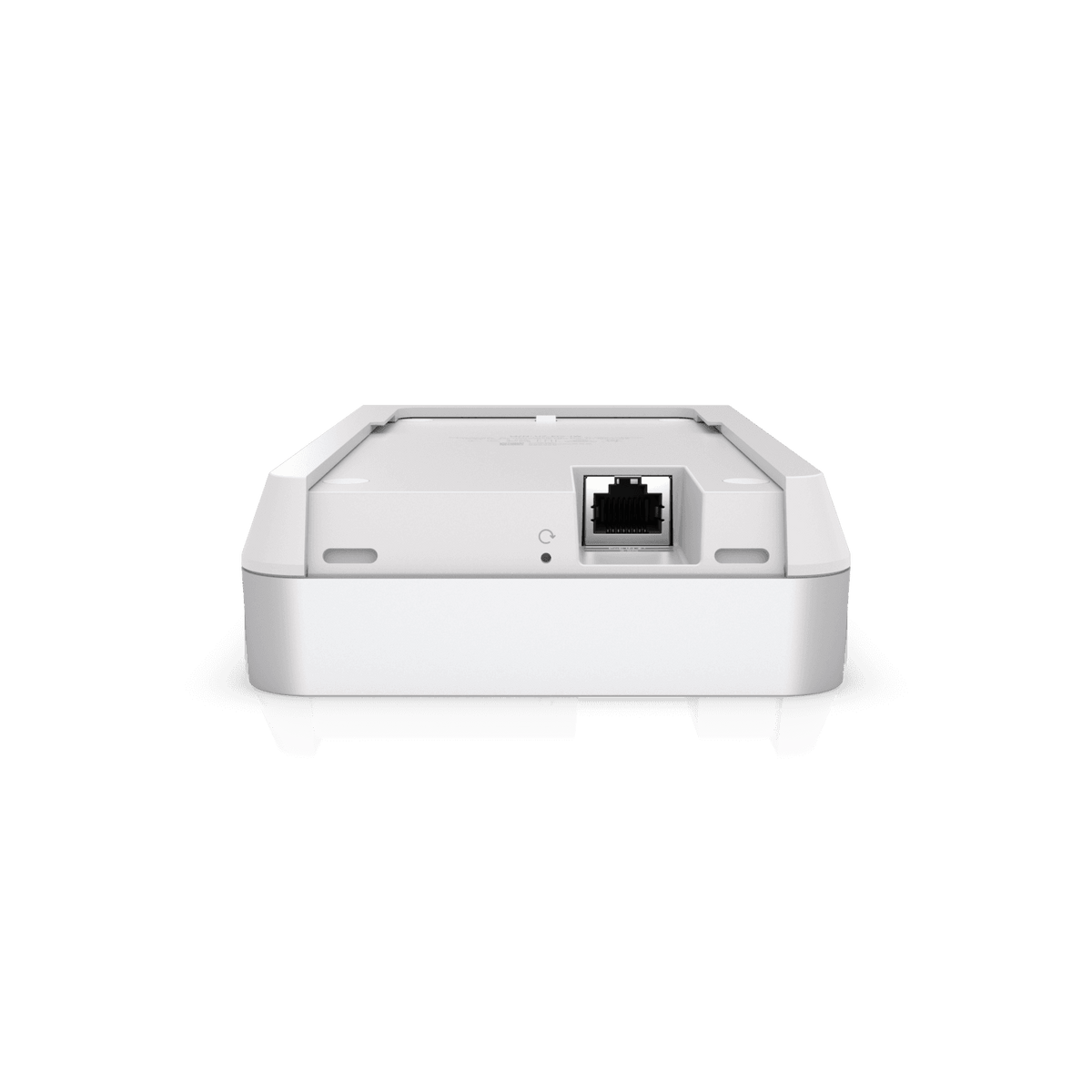

• High-Speed Uplink: Outfitted with a single 2.5 Gbps RJ45 Ethernet port at the bottom to eliminate bottlenecks.
• Wall-Optimized Coverage: Covers up to 140 m² (1,500 ft²) with antenna patterns tuned for directional wall propagation.
• High Density Client Handling: Supports 300+ concurrent clients.
• Power Requirement: Operates via standard 802.3at PoE+ with a maximum power draw of 22W.
• Aesthetic Accessories (Sold Separately): Can be adapted using an official Desk Stand for tabletop use, or a Paintable Flush Mount kit to submerge the device almost completely flat inside drywall.

SPECIFICATIONS:

• Dimensions: 150 × 103 × 36 mm (5.9 × 4.1 × 1.4")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE
• Mounting: Wall (mount included)
• Power Method: PoE+
• MIMO: 6 GHz: 2 × 2 (DL/UL MU-MIMO)
• MIMO: 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• MIMO: 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Maximum Data Rate: 6 GHz: 5.8 Gbps (BW320)
• Maximum Data Rate: 5 GHz: 4.3 Gbps (BW240)
• Maximum Data Rate: 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain: 6 GHz: 6 dBi
• Antenna Gain: 5 GHz: 5 dBi
• Antenna Gain: 2.4 GHz: 4 dBi
• Maximum TX Power: 6 GHz: 23 dBm
• Maximum TX Power: 5 GHz: 26 dBm
• Maximum TX Power: 2.4 GHz: 22 dBm
• Maximum BSSIDs: 8 per radio
• 802.11be (WiFi 7) Data Rates: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6/6E) Data Rates: 7.3 Mbps to 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5) Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160)
• 802.11n Data Rates: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Maximum Power Consumption: 22 W
• Supported Voltage Range: 44–57 V DC
• Networking Interface: 1 × 1/2.5 GbE RJ45 port
• Weight: 580 g (1.3 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum
• Mount Material: Aluminum
• LED: System: White/Blue
• Channel Bandwidth: HT 20/40 MHz
• Channel Bandwidth: VHT 20/40/80/160 MHz
• Channel Bandwidth: HE 20/40/80/160 MHz
• Channel Bandwidth: EHT 20/40/80/160/240/320 MHz
• Operating Frequency (US/Canada): 2400–2472 MHz
• Operating Frequency (US/Canada): U-NII-1: 5150–5250 MHz
• Operating Frequency (US/Canada): U-NII-2A: 5250–5350 MHz
• Operating Frequency (US/Canada): U-NII-2C: 5470–5725 MHz
• Operating Frequency (US/Canada): U-NII-3: 5725–5850 MHz
• Operating Frequency (US/Canada): U-NII-5 to U-NII-8: 5925–7125 MHz
• Operating Frequency (Worldwide): 2400–2483.5 MHz
• Operating Frequency (Worldwide): 5150–5850 MHz
• Operating Frequency (Worldwide): 5925–7125 MHz
• Ambient Operating Temperature: −30 to 60°C (−22 to 140°F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 10022-24-08356
• Application Requirements: UniFi Network
• Minimum UniFi Network Version: 8.1.113 or later

WHAT’S IN THE BOX:

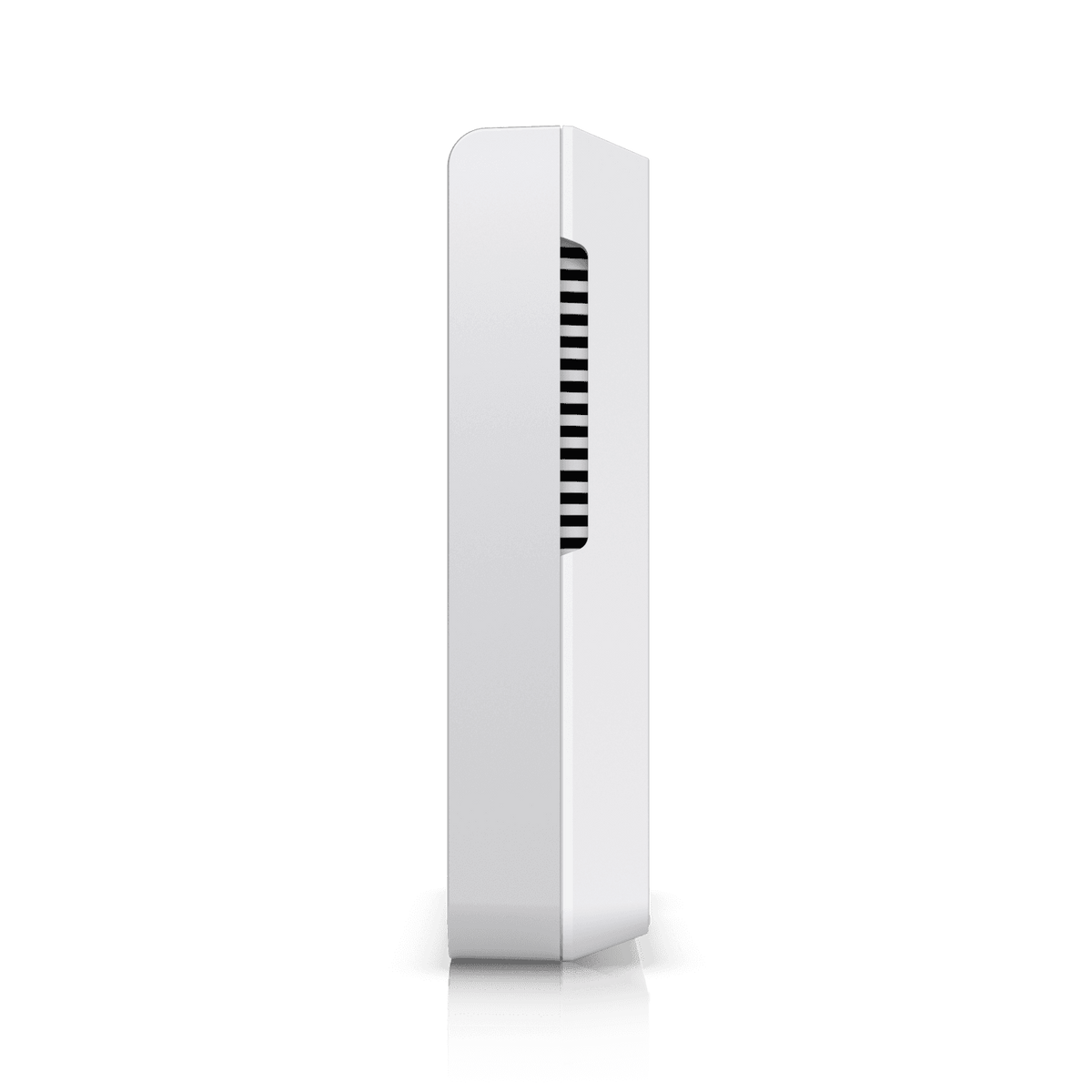

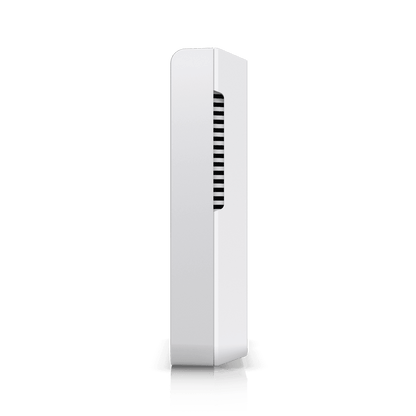

• U7 Pro Wall Access Point unit with side cooling vents x1

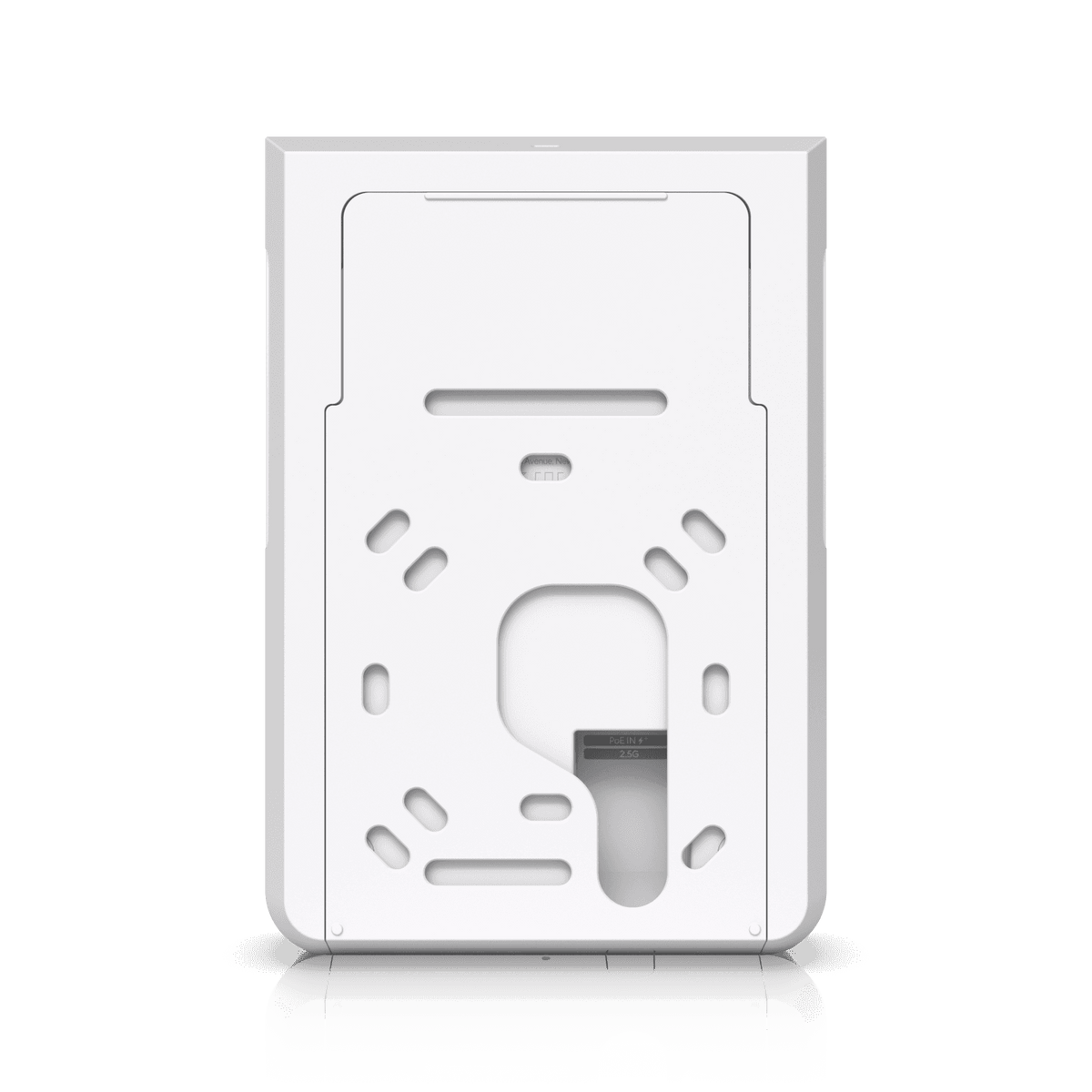

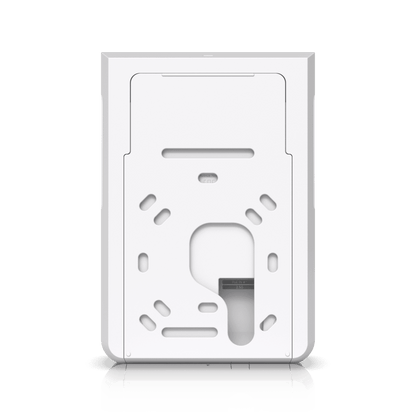

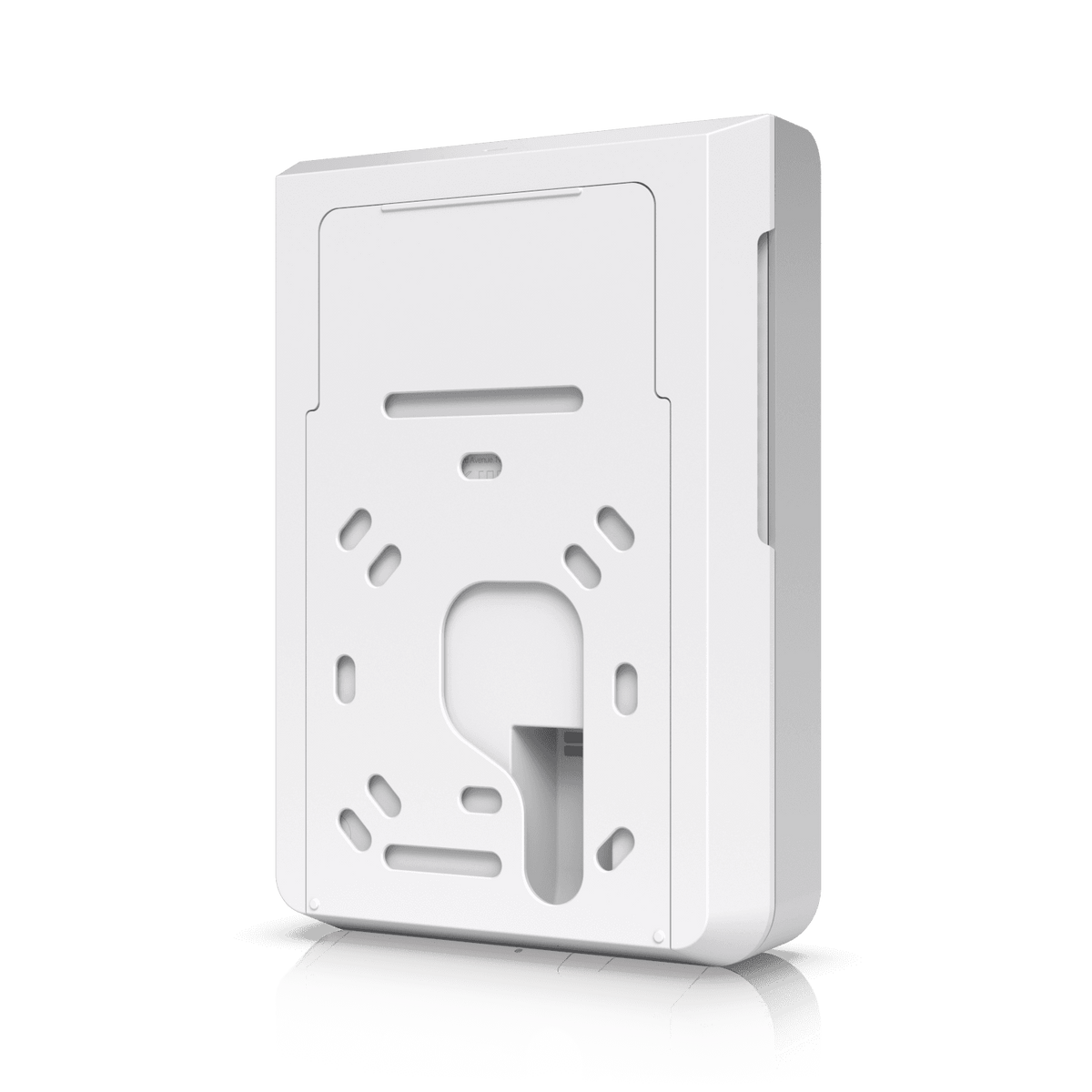

• Metal mounting bracket (fits directly on walls or a single-gang box) x1
• Cardboard mounting template with a built-in bubble level x1
• Quick-release key/tool for removing the unit safely from the bracket x1
• Installation hardware kit (drywall anchors, wall screws, and workbox screws) x1

WARRANTY:

• 12 Months
