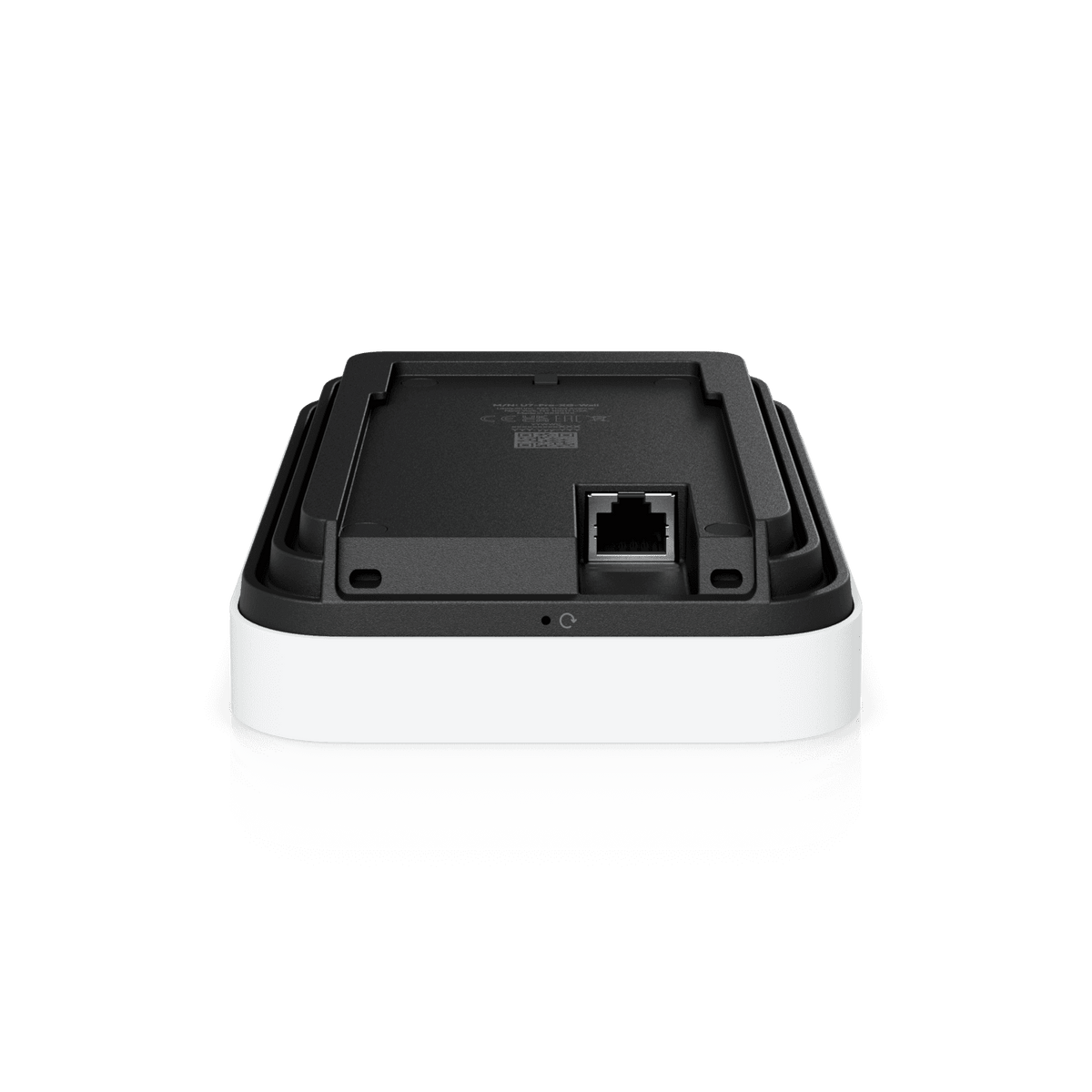

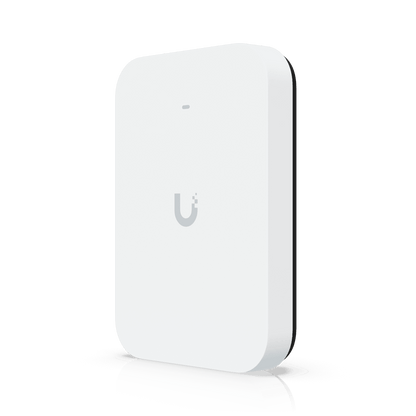

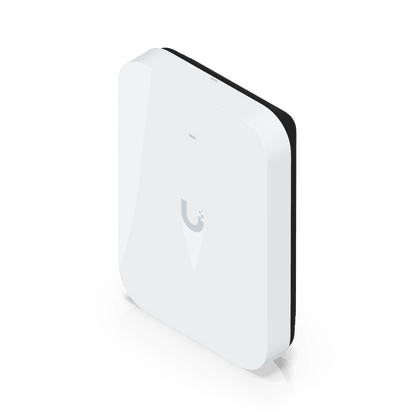

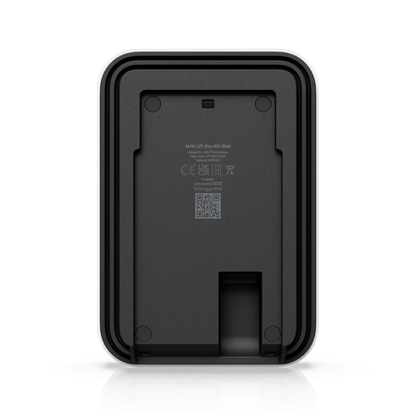

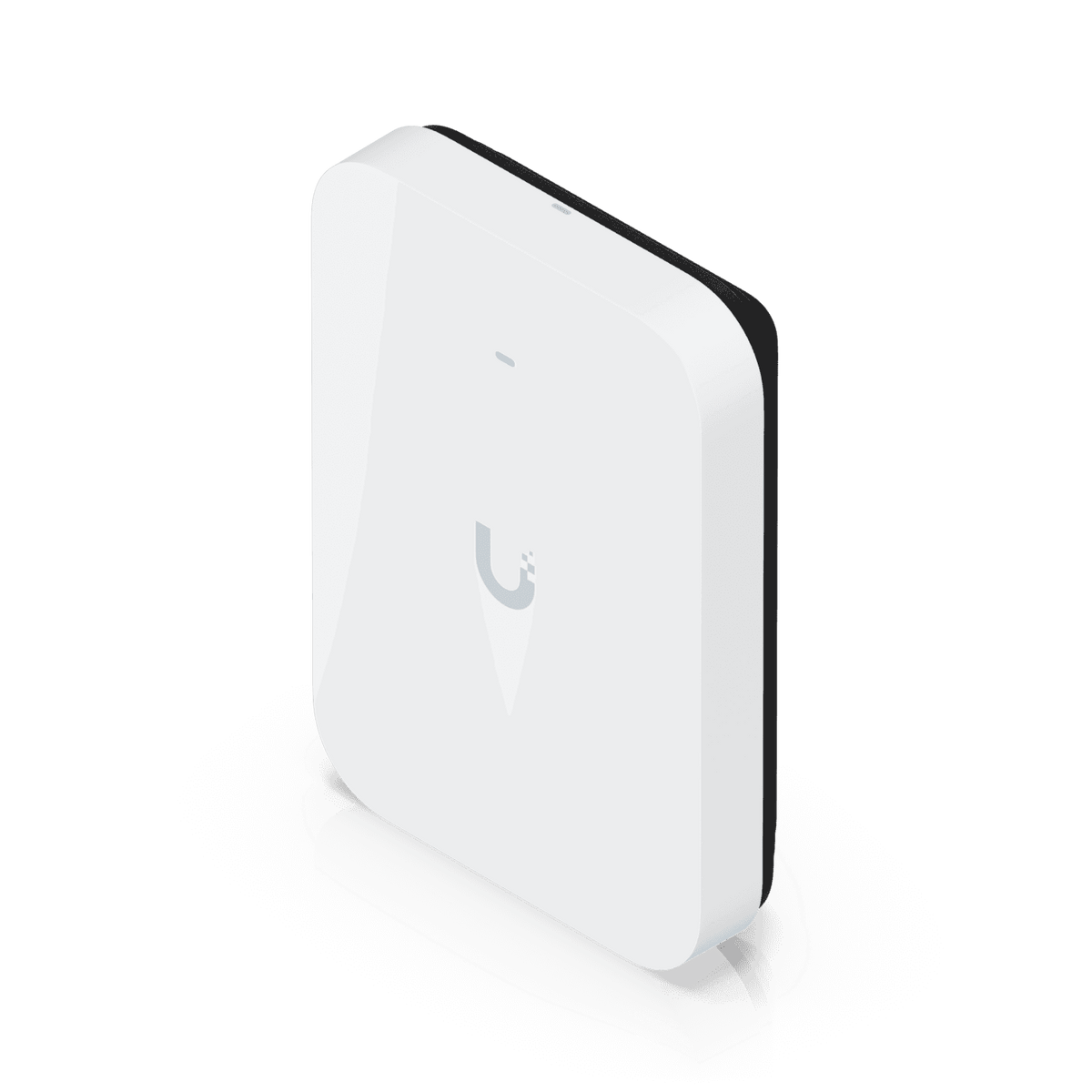

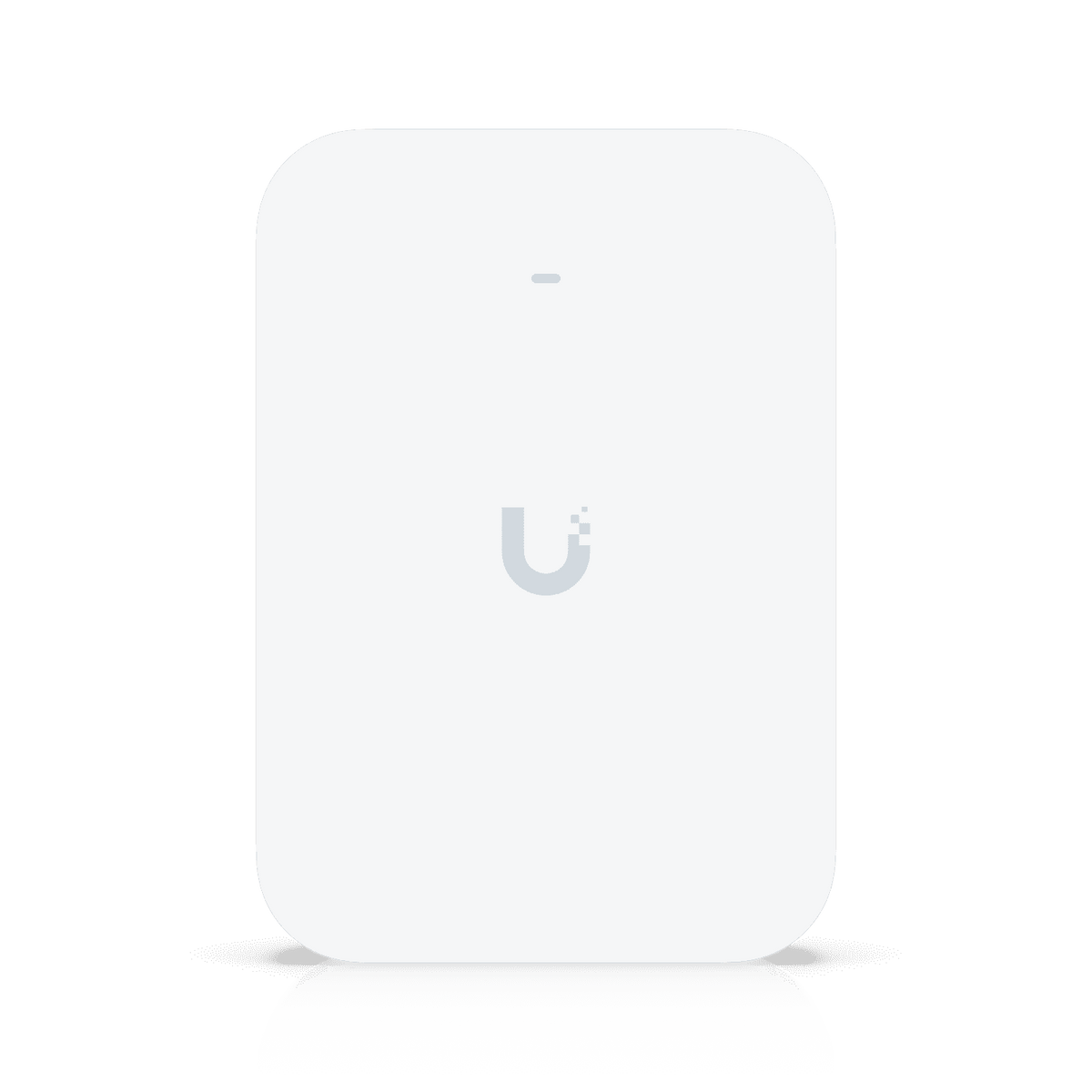

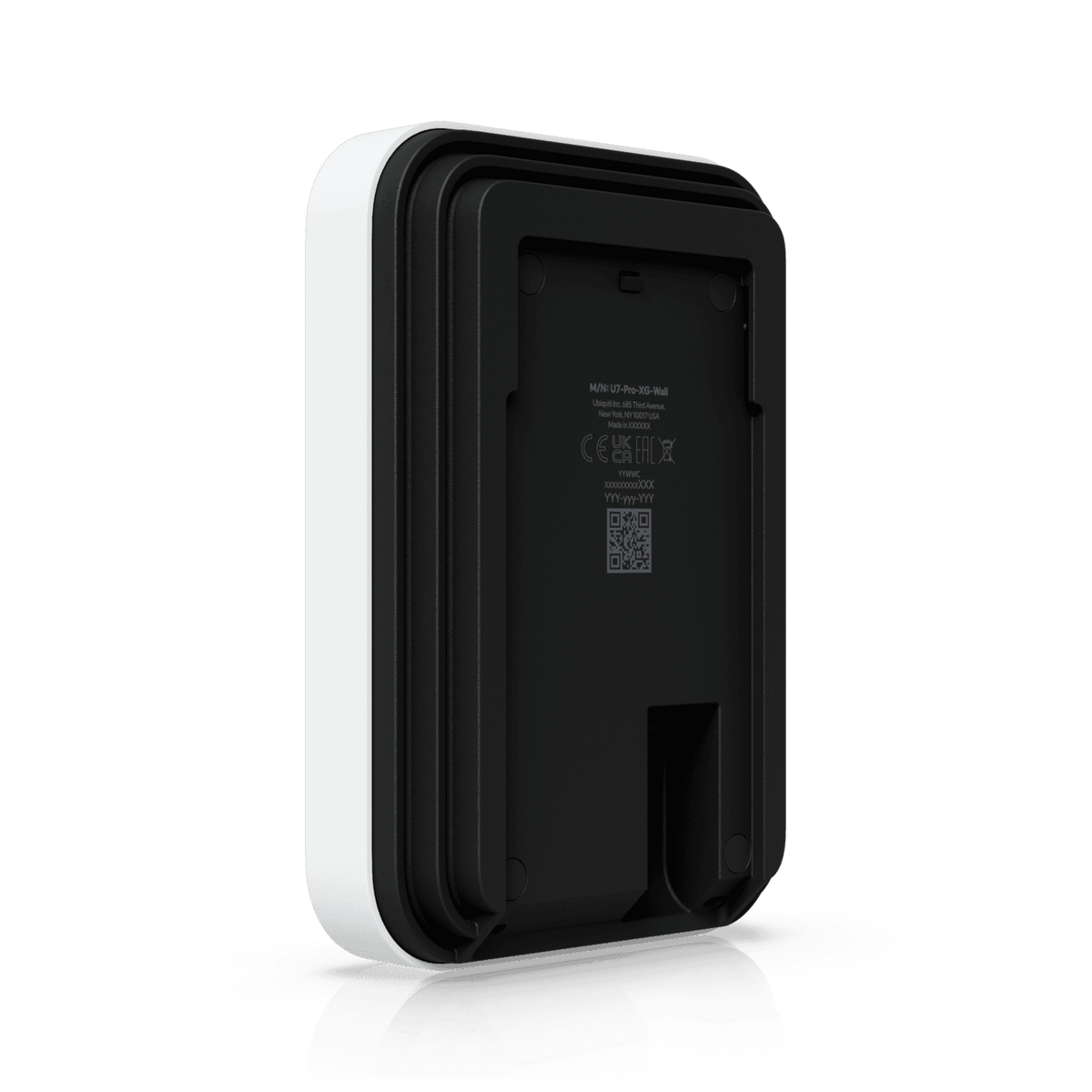

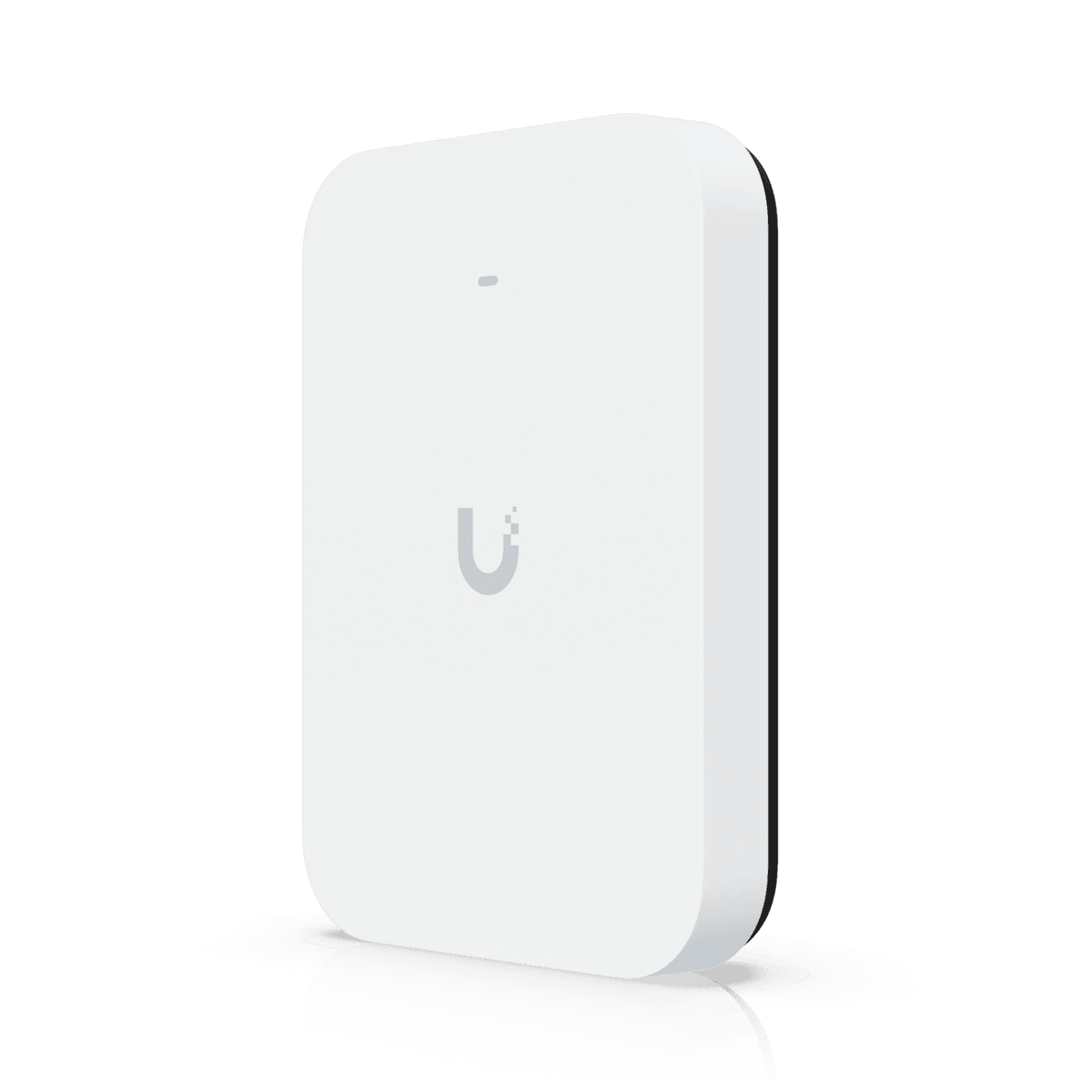

Ubiquiti UniFi WiFi 7 Tri Band Pro XG 10G In-Wall AP

Ubiquiti's U7-Pro-XG-Wall is a Tri-Band WiFi 7, wall-mounted AP with 6 spatial streams and 1x 10Gbps port. It delivers an aggregate data rate of up to 5.8Gbps on 6GHz (2x2 MU-MIMO) 4.3Gbps on 5GHz (2x2 MU-MIMO) and 688Mbps on its 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

FEATURES:

• 10 GbE Uplink: Equipped with a 10 Gbps Ethernet port to eliminate network bottlenecks.
• Triple-Band Wi-Fi 7: Operates across the 2.4 GHz, 5 GHz, and 6 GHz wireless bands with support for 320 MHz channels.
• 10.78 Gbps Air Rate: Uses a 6-stream architecture (2x2 MU-MIMO on all bands) to deliver extreme wireless throughput.
• Capacity & Coverage: Covers up to 140 m² (1,500 ft²) and easily manages 300+ connected devices.
• PoE+ Powered: Runs on standard 802.3at Power over Ethernet (max 22W draw).
• Sleek In-Wall Design: Mounts flush against the wall over standard electrical gang boxes with a fanless, silent design.

SPECIFICATIONS:

• Dimensions: 155 × 108 × 33.5 mm (6.1 × 4.3 × 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 10 GbE
• Mounting: Wall
• Power Method: PoE+
• MIMO:
  • 6 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 6 dBi
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 6 GHz: 24 dBm
  • 5 GHz: 26 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio
• Supported Data Rates:
  • 802.11be (WiFi 7)
  • 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
  • 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Passpoint (Hotspot 2.0): ✓
• Captive Hotspot Portal: ✓
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
• Max. Power Consumption: 22 W
• Supported Voltage Range: 42.5–57 V DC
• Networking Interface: 1 × 10 GbE RJ45 port
• Weight: 505 g (1.1 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Aluminum alloy
• LEDs: System — W/B
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
• Ambient Operating Temperature: -30 to 40 °C (-22 to 104 °F)
• Ambient Operating Humidity: 5–95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Application Requirements: UniFi Network version 10.0 and later
• Mobile App: iOS™ version 10.29.3 and later; Android™ version 10.31.1 and later

WHAT’S IN THE BOX:

• U7 Pro XG Wall Access Point unit x1
• Wall mounting plate (designed for standard electrical gang box patterns) x1
• Bubble level tool (to assist with perfect level alignment) x1
• Quick-release pick tool (to unlatch the AP from its wall bracket) x1
• Installation hardware kit (screws, wall anchors, and gang box bolts) x1

WARRANTY:

• 12 Months
