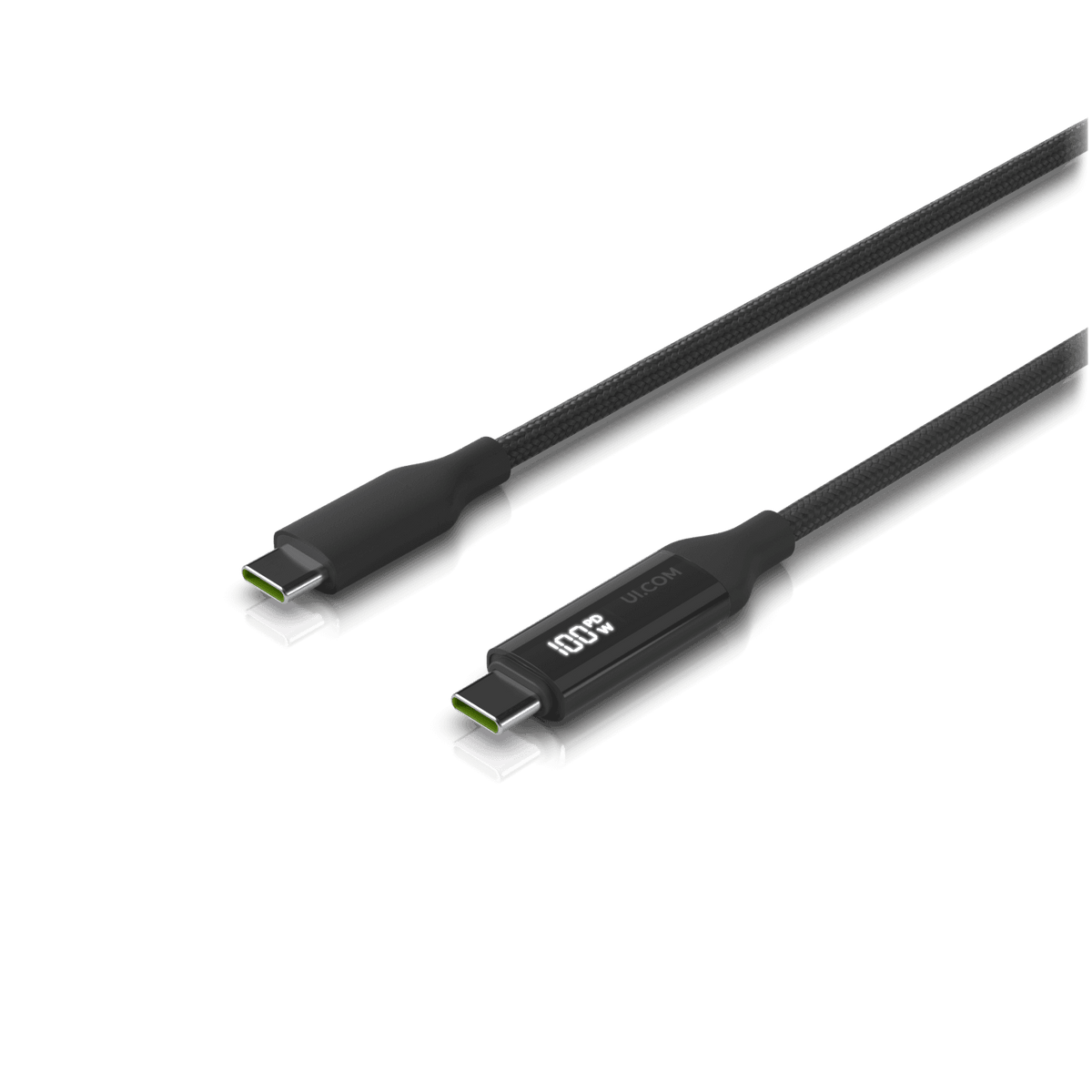

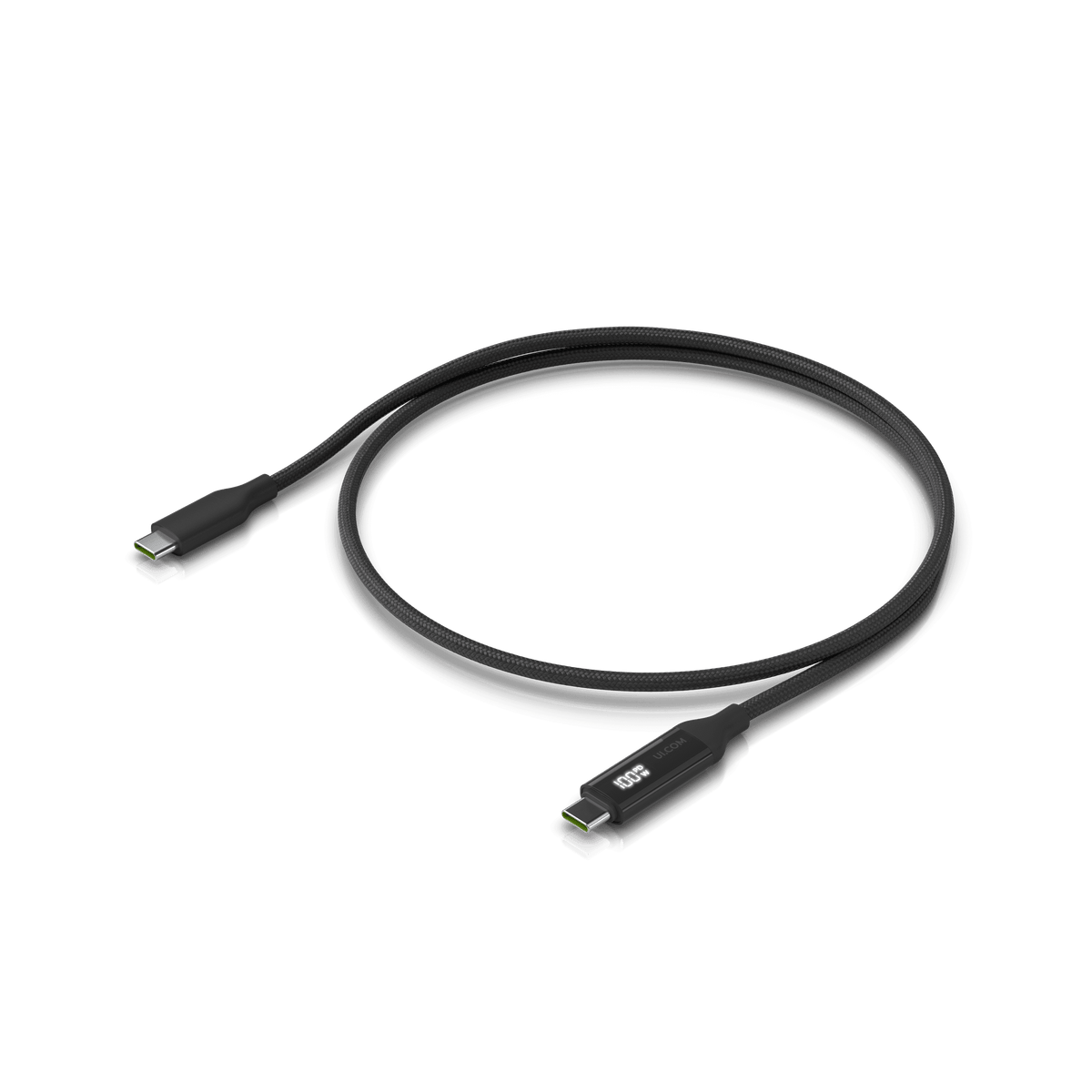

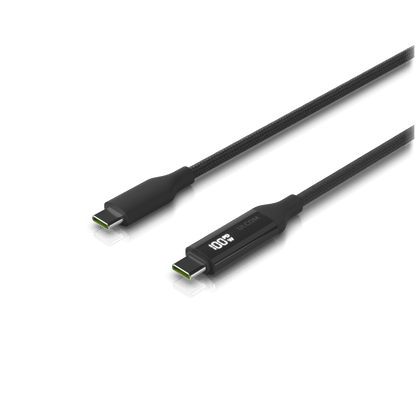

Ubiquiti USB-C Cable with Charge Display Black

Ubiquiti's UACC-USB1M-B is a braided power and data cable with a double-sided charge display. It features a durable braided cable design with an integrated power meter, 100W max power output and 480Mbps maximum data transfer rate (0.3 - 2m only).

FEATURES:

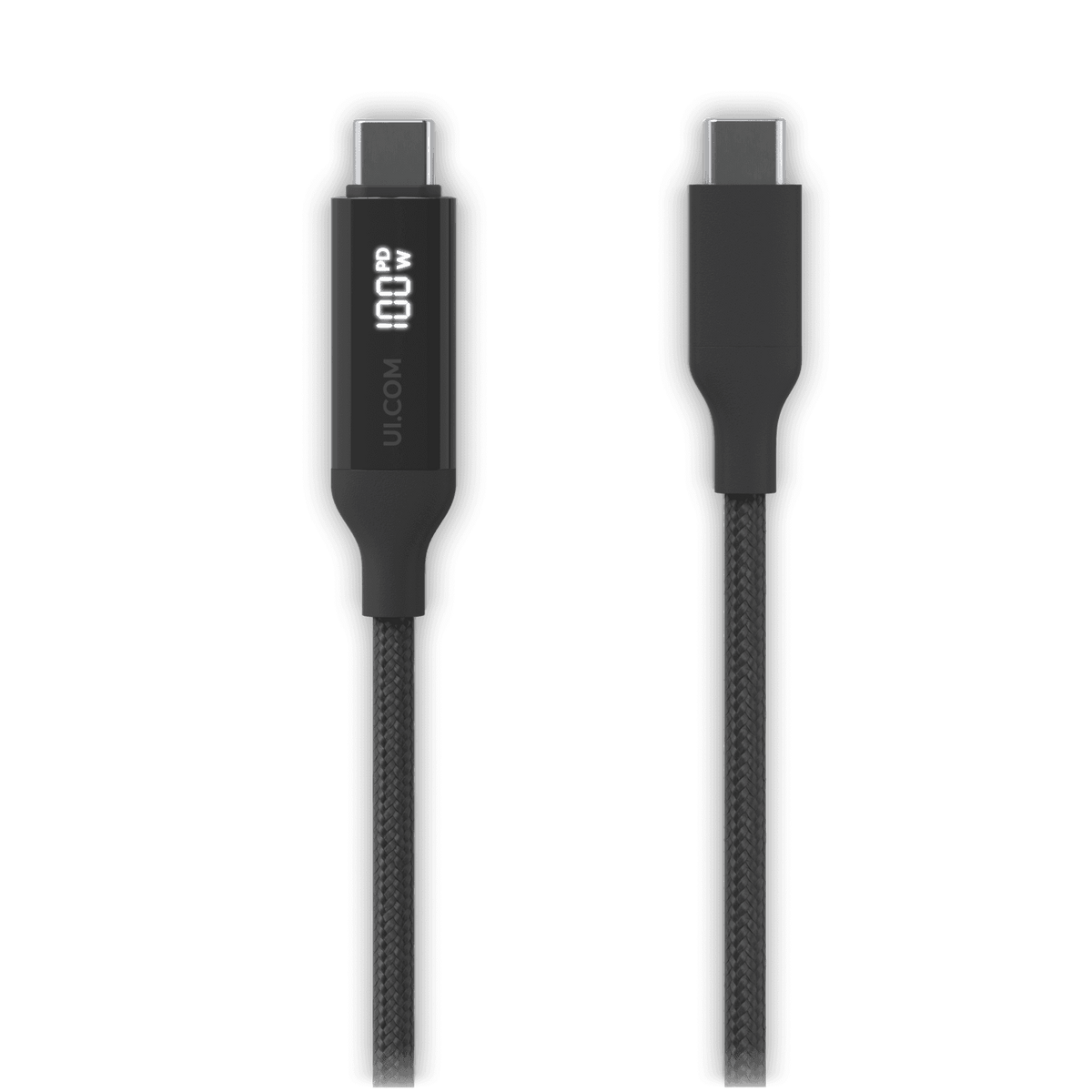

• Real-Time Power Meter: Features a double-sided digital display built into the connector to show real-time charging wattage.
• 100W Power Delivery: Supports high-speed charging up to 100W PD for laptops, phones, and tablets.
• Rugged Braided Jacket: Encased in a durable PP & PET braided weave to prevent tangling and fraying.
• Data Transmission: Handles file transfers and data syncing up to 480 Mbps (USB 2.0).
• High-Quality Core: Built with stranded tinned copper and structured shielding to protect against electrical interference.

SPECIFICATIONS:

• Available Lengths: 0.3 / 1 / 2 / 4.5 / 7 m (1 / 3.3 / 6.6 / 14.8 / 23 ft)
• Shielding Type: Shielded twisted pair (STP)
• Conductor Type: Stranded tinned copper
• Conductor Wire Gauge:
• 0.3 / 1 / 2 m: (3) 24 AWG, (2) 30 AWG, (2) 32 AWG
• 4.5 / 7 m: (7) 23 AWG, (3) 32 AWG
• Cable Jacket Diameter:
• 0.3 / 1 / 2 m: 4.4 mm (0.17")
• 4.5 / 7 m: 5.3 mm (0.2")
• Jacket Material: PP & PET braiding
• Jacket Color: Black, cool gray
• Cable Connector Type: USB Type-C
• Bend Radius:
• 0.3 / 1 / 2 m: 15 mm (0.6")
• 4.5 / 7 m: 27 mm (1.1")
• Power Output: Max. 100W PD
• Ambient Operating Temperature: -20 to 60° C (-4 to 140° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: ✓

WHAT’S IN THE BOX:

• USB-C to USB-C Cable with Charge Display (1 meter) x1

WARRANTY:

• 12 Months
